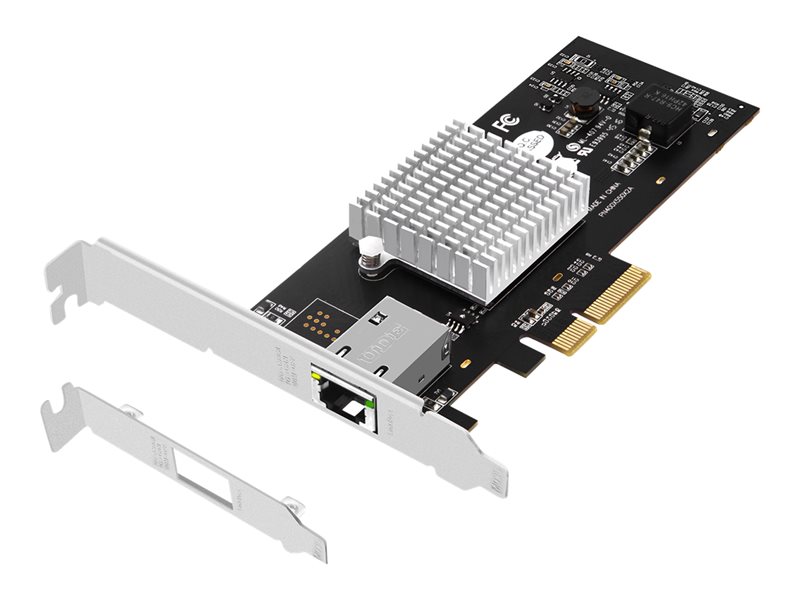

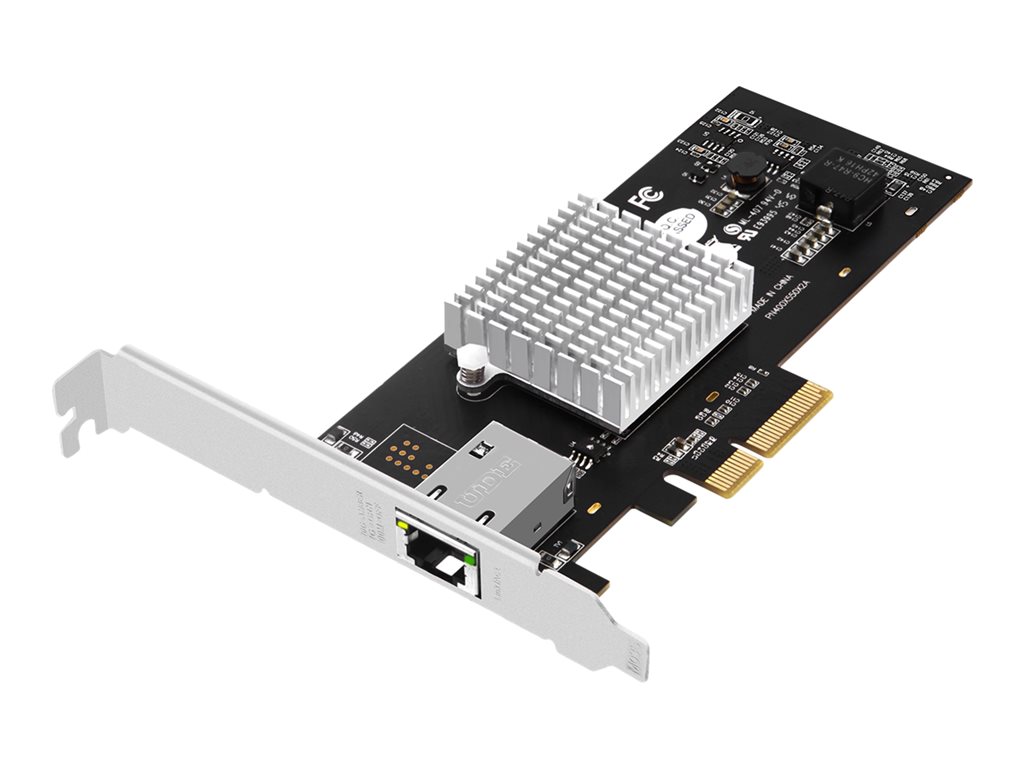

SIIG - SIIG Dual Profile 5-Speed Multi-Gigabit
Network adapter - PCIe 3.0 x4 low profile - 10Gb Ethernet x 1 - black
SIIG
CN-GP1211-S1
0662774041230
N/A
New
Product Description
Additional Details

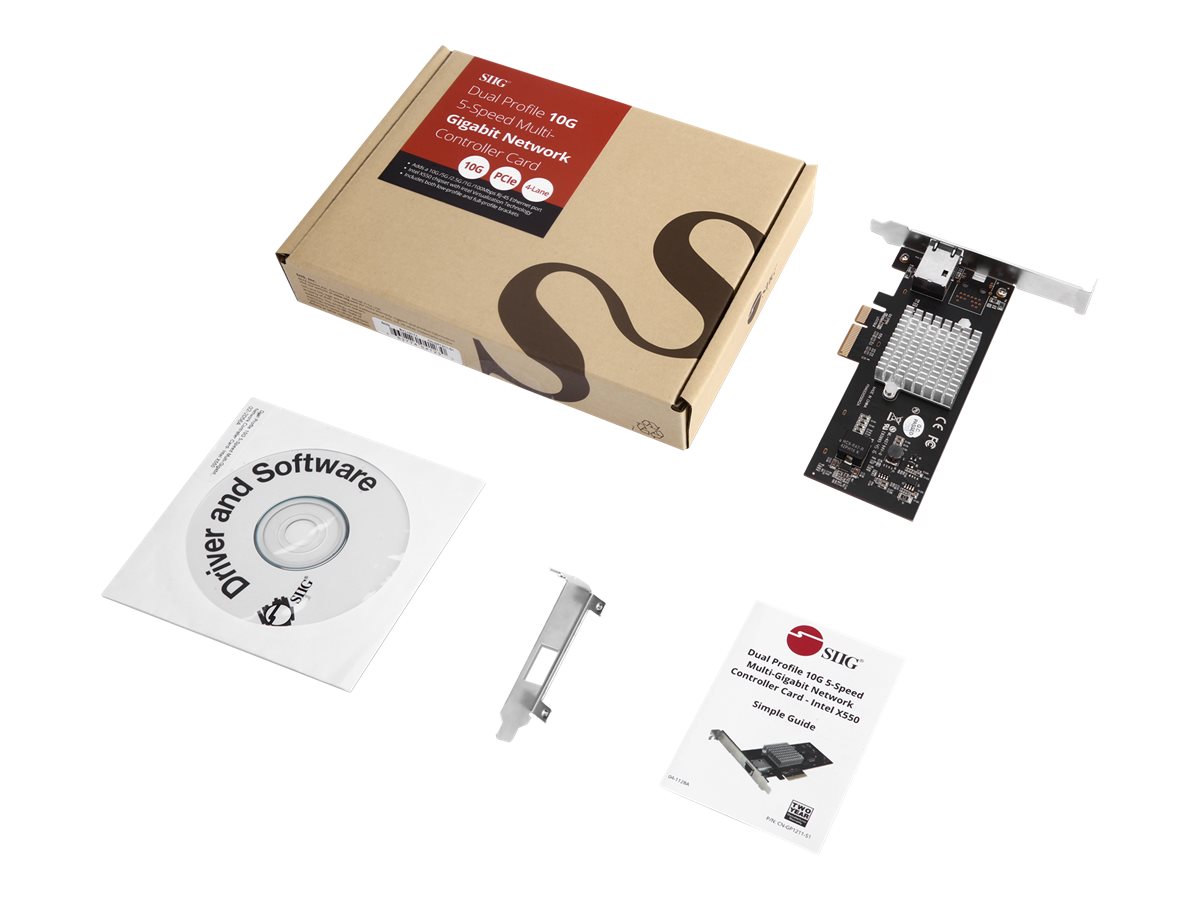

What's Included
| Main Specifications | |
|---|---|
| Product Description | SIIG Dual Profile 10G 5-Speed Multi-Gigabit Network Controller Card - Intel X550 - network adapter |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Ports | 10Gb Ethernet x 1 |
| Dimensions (WxDxH) | 0.6 in x 4.7 in x 3 in |
| Weight | 1.28 oz |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | 100Mb LAN, GigE, 10 GigE |
| Data Transfer Rate | 20 Gbps |
| Capacity | Jumbo frame size: 15.5 KB |
| Processor | 1 x Intel x550 |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Color | Black |
| System Requirements | Linux Kernel 2.6.x or later, Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2008 R2 (64-bits), Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 (64-bit), Windows 10 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Gb Ethernet - RJ-45 - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, RoHS |
| Color | Black |
| Networking | |
| Ports | 10Gb Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 20 Gbps |
| Capacity | Jumbo frame size: 15.5 KB |
| Status Indicators | Link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, Jumbo Frames support, PXE support, tagged VLAN, Virtualization Technology for Connectivity (VT-c), DMA Coalescing (DMAC), Energy-Efficient Ethernet (EEE) |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Linux Kernel 2.6.x or later, Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2008 R2 (64-bits), Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 (64-bit), Windows 10 (32/64 bits), Microsoft Windows Server 2016 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x Intel x550 |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 4.7 in |
| Height | 3 in |
| Weight | 1.28 oz |
