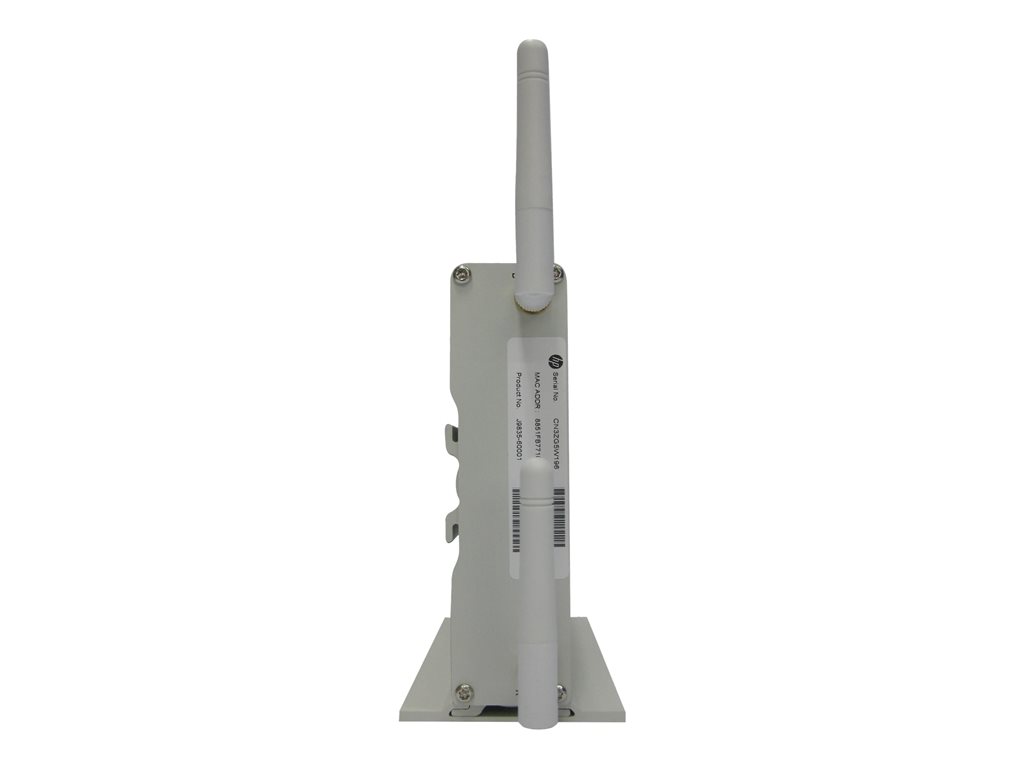

Hewlett Packard Enterprise - HPE 501 Wireless Client Bridge
Wireless router - GigE - 802.11b/g/n/ac - Dual Band - wall-mountable
Hewlett Packard Enterprise
J9835A
0887758655535
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE 501 Wireless Client Bridge - wireless router - 802.11b/g/n/ac - desktop, wall-mountable |
| Device Type | Wireless router |
| Enclosure Type | Desktop, wall-mountable |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | TCP/IP |
| Remote Management Protocol | SNMP 3, SNMP 2c |
| Features | Power over Ethernet (PoE), DFS support, half duplex mode, full duplex mode, MIMO technology, Wi-Fi Multimedia (WMM) support, RADIUS support, QoS tagging, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e |
| Dimensions (WxDxH) | 5.5 in x 5 in x 1.3 in |
| Weight | 32.1 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless router |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | TCP/IP |
| Remote Management Protocol | SNMP 3, SNMP 2c |
| Encryption Algorithm | TLS, PEAP, WPA, WPA2, WEP |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Features | Power over Ethernet (PoE), DFS support, half duplex mode, full duplex mode, MIMO technology, Wi-Fi Multimedia (WMM) support, RADIUS support, QoS tagging, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, FCC Part 15.247, OET 65 C, RSS-102, UL 2043, UL 60950-1, EN 60950-1, FCC Part 15.407, EN 60601-1-2, EN 62311, CAN/CSA C22.2 No. 60950, EN 300 328, EN 301 489-1, EN 301 893, EN 301 489-17 |
| Status Indicators | PoE |
| Expansion / Connectivity | |
| Interfaces | Serial: 1 x RS-232C ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime - response time: next business day |
| Software / System Requirements | |
| Software Included | HP Quick Start, HP Intelligent Management Center |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 5 in |
| Height | 1.3 in |
| Weight | 32.1 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
