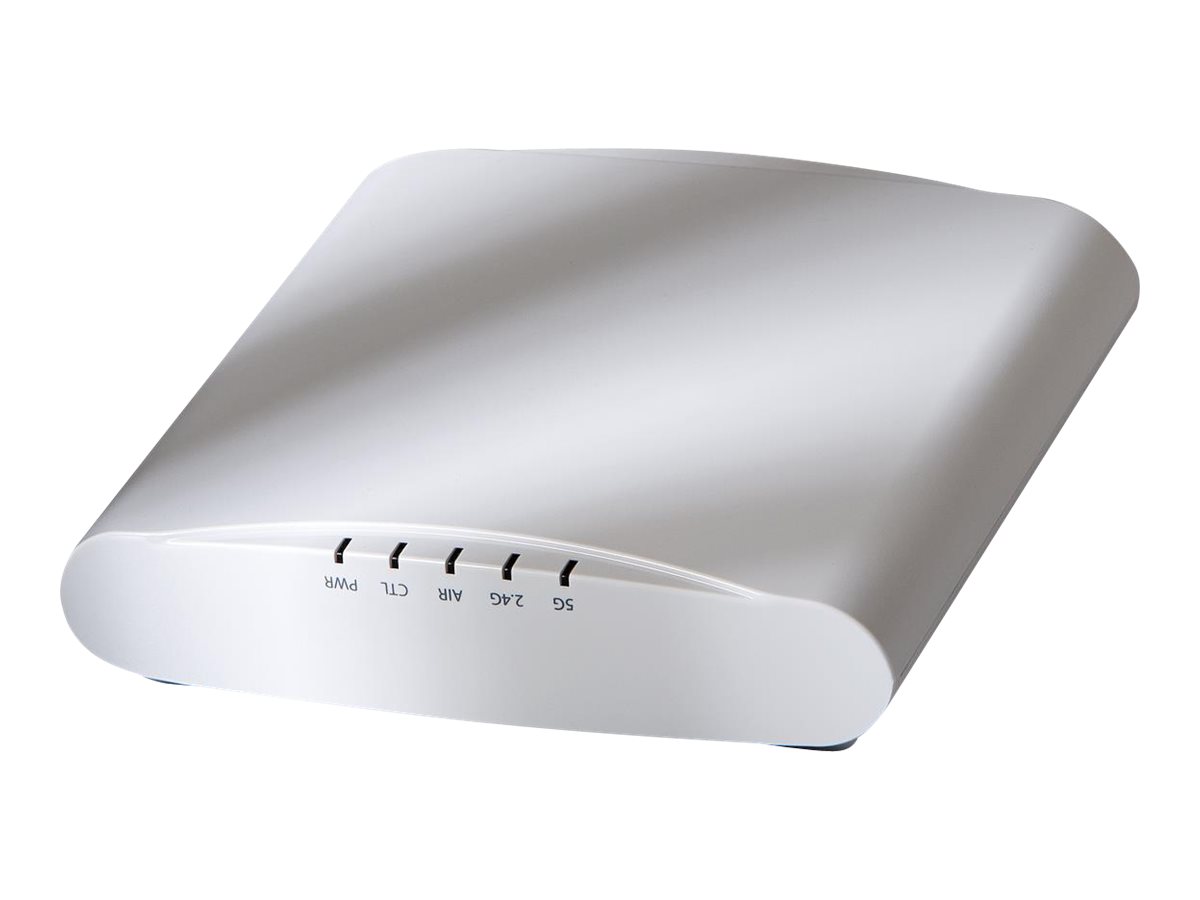

Ruckus Wireless - Ruckus ZoneFlex R510
Unleashed - wireless access point - 802.11ac Wave 2 - Wi-Fi - Dual Band
Ruckus Wireless
9U1-R510-XX00
N/A
N/A
New
Product Description
Ruckus Unleashed access points are designed for organizations and venues that need rock-solid Wi-Fi performance that is easy to deploy without wireless controllers.
The Ruckus Unleashed ZoneFlex R510 indoor AP is optimized for mid-sized organizations requiring higher performance and support for more devices.
Mid-sized businesses, branch offices, schools, hotel chains, retail outlets, restaurants, multi-tenant office buildings, hotspots-these are just some of the environments where high-speed, easy to manage Wi-Fi is critical to productivity, revenue generation, and customer satisfaction.
This mid-range 802.11ac Wave 2 wireless access point incorporates top performance patented technologies found only in the Ruckus Wi-Fi portfolio.
· BeamFlex+ adaptive antenna technology directs each packet over the best performing signal path, extending coverage range and mitigating interference automatically.
· ChannelFly technology chooses the best channel to give users the highest throughput-delivering up to 50 percent capacity gain over competitive dynamic channel selection approaches.
The R510:
· Installs easily even without an IT staff
· Supports up to 512 clients on a single AP
· Supports more services-including streaming HD media, cloud applications, web browsing, and email
· Easily handles the transmission of challenging content-including jitter and latency sensitive streaming HD media
· Uses fewer APs to cover more area with extended range capabilities
· Improves throughput automatically delivering up to 50 percent capacity gains
· Provides more wireless coverage and reduces costs with less cable runs
· Reduces costs with support for both standard PoE and PoE+.
MU-MIMO
MU-MIMO helps Wave 2 and non-Wave 2 clients. The R510 can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput.
Advanced WLAN applications
When used with the Ruckus WLAN controllers, each ZoneFlex R510 supports a wide range of value-added applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. WLANs can be created and mapped to the same or different APs or VLANs. In a centrally managed configuration, the ZoneFlex R510 works with a wide range of authentication servers including Microsoft's Active Directory, LDAP, and RADIUS.
Flexible deployment options
ZoneFlex R510 APs can be deployed as a standalone AP or as part of a centrally managed wireless LAN using ZoneDirector or SmartZone Smart WLAN controllers. ZoneFlex R510 can be deployed across any L2/L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP, or route between the WAN and NAT'ed private subnets. With the Ruckus controllers, each ZoneFlex R510 is automatically configured through the network making deployment quick and easy.
Complete local and remote management
Each Zoneflex R510 can be managed by the ZoneDirector controller or the SmartZone controllers like SZ100, SCG200 or the vSZ. The controllers enable local management and control of APs, adding value-added services such as centralized AP provisioning, management and control at high scale.
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | Ruckus ZoneFlex R510 - Unleashed - wireless access point |
Device Type | Wireless access point |
Form Factor | External |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Frequency Band | 2.4 GHz, 5 GHz |
Capacity | Concurrent stations: 512 ¦ Simultaneous VoIP clients: 30 |
Power Over Ethernet (PoE) Supported | PoE |
Dimensions (WxDxH) | 6.6 in x 6.5 in x 1.6 in |
Weight | 12.34 oz |
Manufacturer Warranty | Limited lifetime warranty |
General | |
Device Type | Wireless access point |
Width | 6.6 in |
Depth | 6.5 in |
Height | 1.6 in |
Weight | 12.34 oz |
Expansion / Connectivity | |
Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Miscellaneous | |
Compliant Standards | UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1 |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 867 Mbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Network / Transport Protocol | FTP |
Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069 |
Frequency Band | 2.4 GHz, 5 GHz |
Capacity | Concurrent stations: 512 ¦ Simultaneous VoIP clients: 30 |
Features | DHCP support, NAT support, LDAP support, auto-uplink (auto MDI/MDI-X), wall mountable, Trivial File Transfer Protocol (TFTP) support, latching, security lock slot (cable lock sold separately), 802.1x authentication, BeamFlex+ Smart Antenna Technology, MU-MIMO technology, SU-MIMO technology |
Encryption Algorithm | AES, TKIP, WPA2, WPA-PSK |
Authentication Method | RADIUS, LDAP, Active Directory |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 95% (non-condensing) |
Antenna | |
Antenna | Internal |
Gain Level | 3 dBi |
