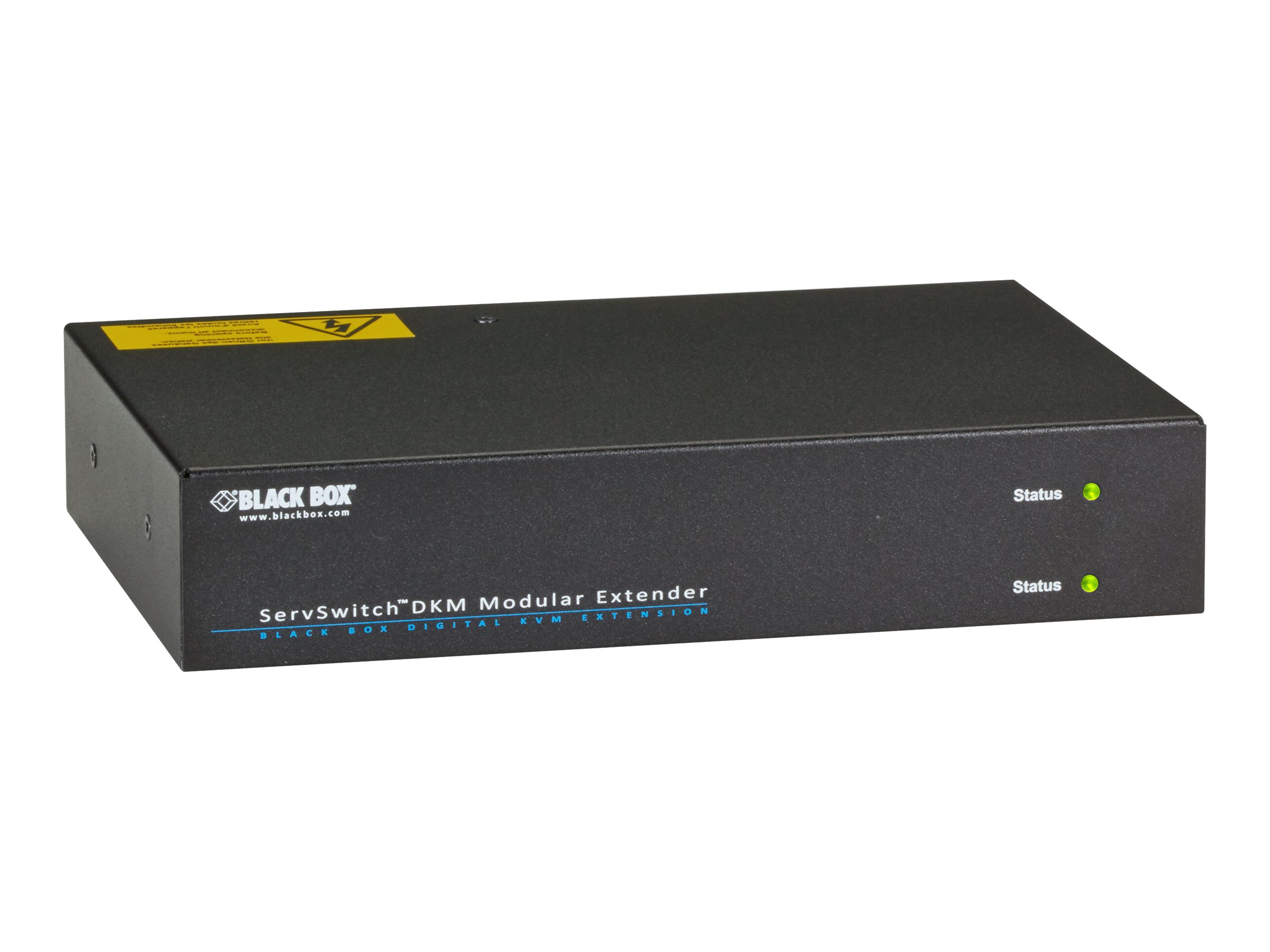

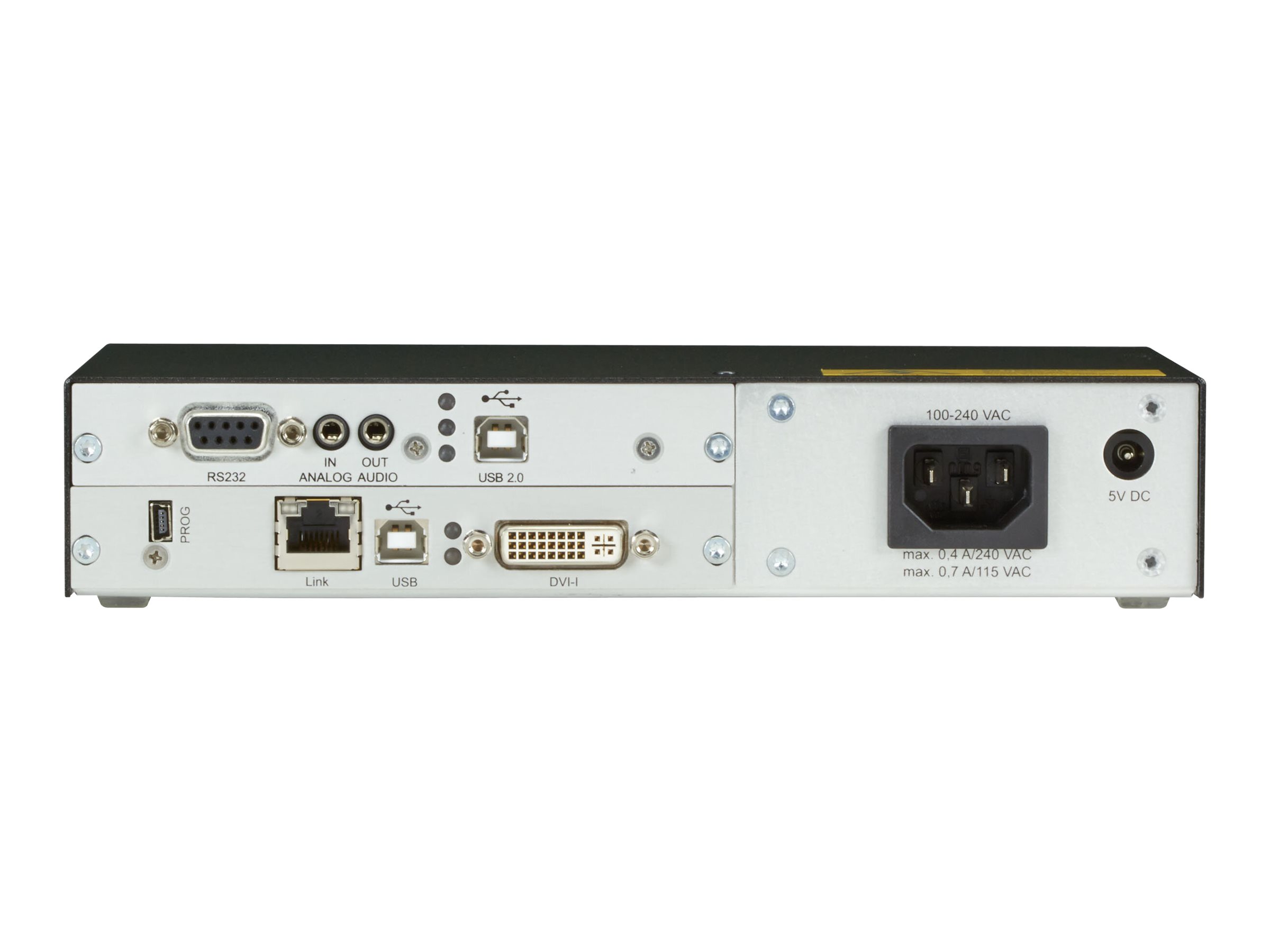

Black Box - Black Box DKM FX Modular KVM Extender Housing, Maritime Use
Modular expansion base - AC 100 - 240 V - 1U - rack-mountable
Black Box
ACXMODH2R-P-R2-SHIP
N/A
N/A
New
Product Description
Additional Details
What's Included
- (1) 2-Port DKM Modular Card Chassis
- (1) Locking Power Cord
- (1) Removal Tool for Cards
- (1) Information/Documentation
| Main Specifications | |
|---|---|
| Product Description | Black Box DKM FX Modular KVM Extender Housing, Maritime Use - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | Rack-mountable - 1U |
| Power | AC 100 - 240 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.7 in x 5.7 in x 1.7 in |
| Weight | 12.7 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Modular expansion base |
| Height (Rack Units) | 1U |
| Width | 8.7 in |
| Depth | 5.7 in |
| Height | 1.7 in |
| Weight | 12.7 oz |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| MTBF | 400,000 hours |
| Compliant Standards | TUV, EN 61000-3-2, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, EN 61000-4-5, EN 61000-4-8, UL 60950-1, EN 60950-1, WEEE, IEC 60945, RoHS2, EN 55022/CISPR 22 Class B |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Status Indicators | Status |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
