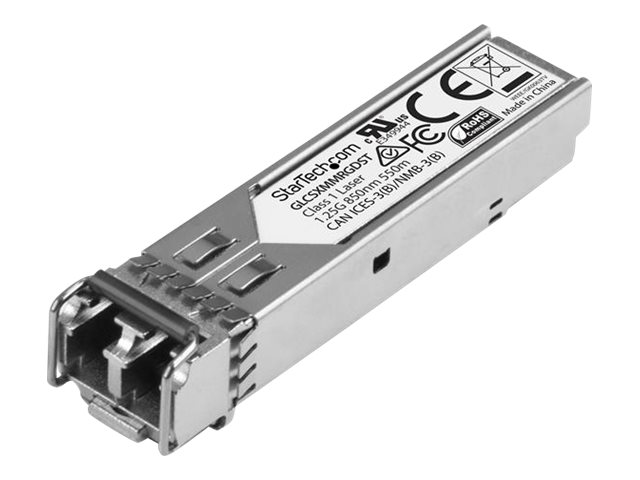

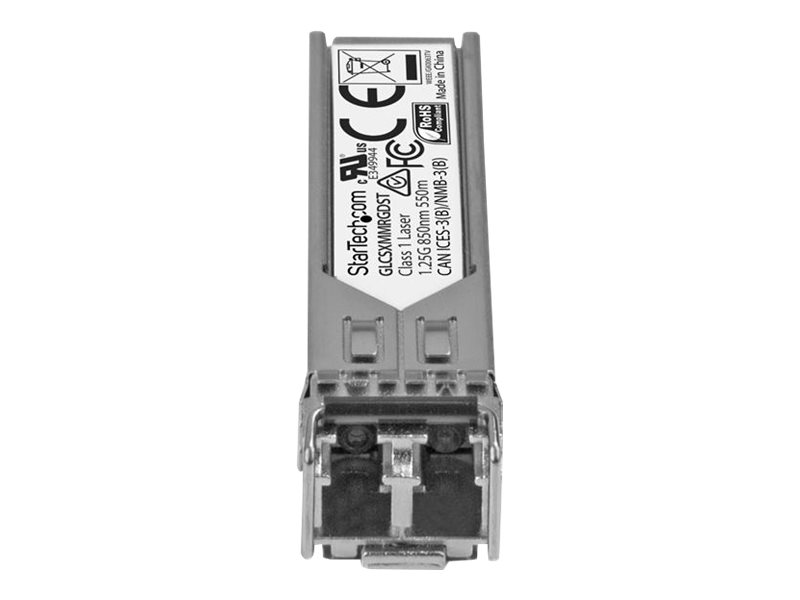

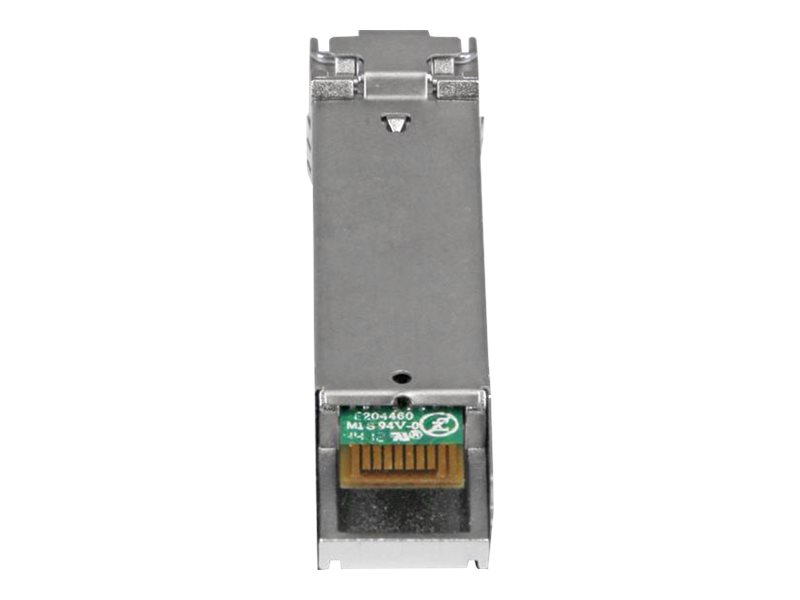

STARTECH.COM - StarTech.com Gigabit Fiber 1000Base-SX SFP Transceiver Module
Cisco GLC-SX-MM-RGD Compatible - MM LC - 550 m (1804 ft) - SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-SX-MM-RGD) - GigE - 1000Base-SX - LC multi-mode - up to 1800 ft - 850 nm
STARTECH.COM
GLCSXMMRGDST
0065030872133
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com Cisco GLC-SX-MM-RGD Compatible SFP Module - 1000BASE-SX - 1GE Gigabit Ethernet SFP 1GbE Multimode Fiber MMF Optic Transceiver - SFP (mini-GBIC) transceiver module - GigE |
| Device Type | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-SX |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | GigE |
| Max Transfer Distance | 1800 ft |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-SX-MM-RGD |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.5 in |
| Weight | 0.99 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Color | Silver |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL, FCC, RoHS, MSA |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-SX-MM-RGD |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Features | Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3z |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.5 in |
| Weight | 0.99 oz |
