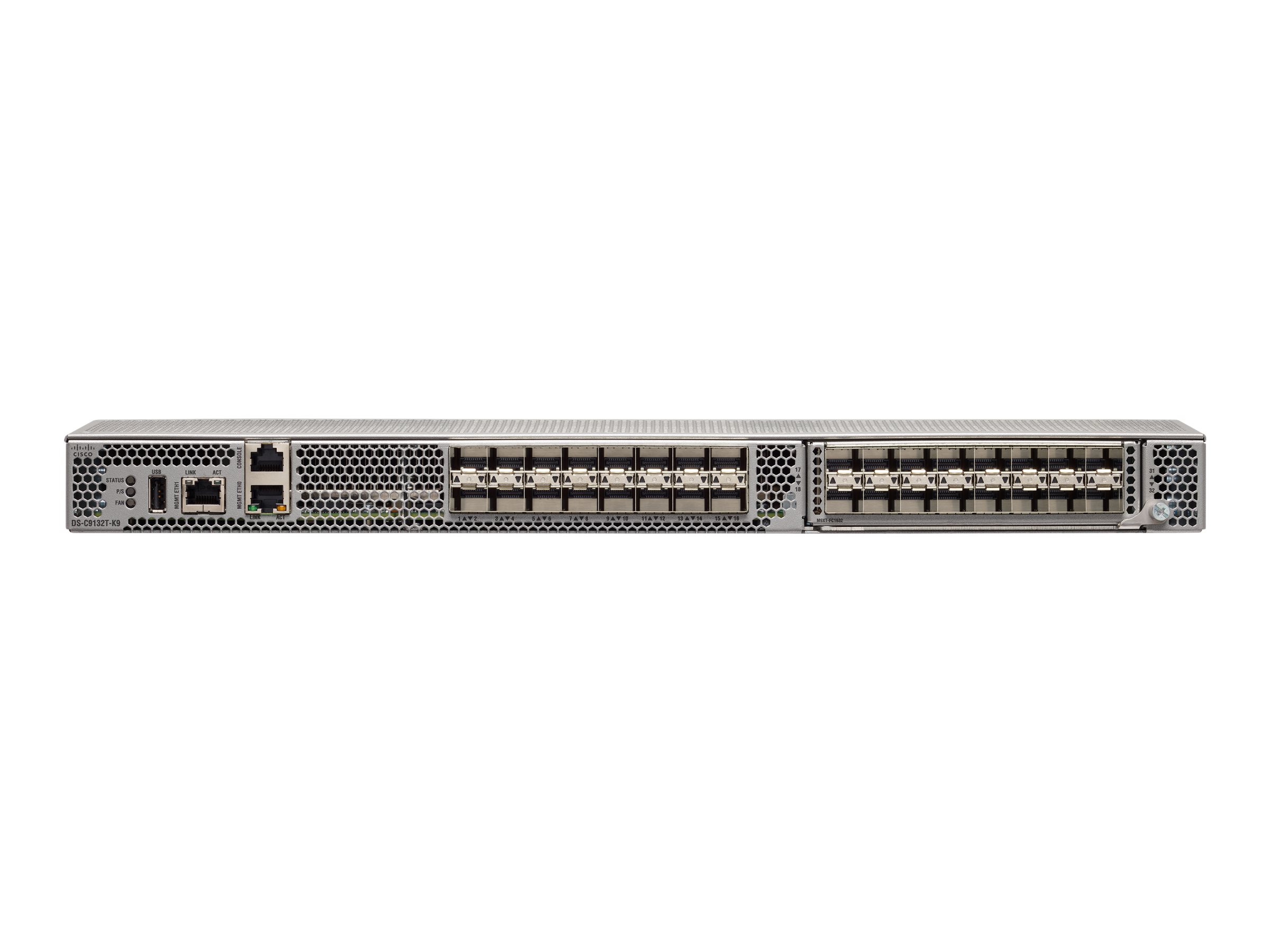

Cisco Systems - Cisco MDS 9132T
Switch - managed - 8 x 32Gb Fibre Channel SFP+ - rack-mountable
Price: $13,554.88
MSRP: $11,300.00
Discount off MSRP: -19.96%
Total Available: 1
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco MDS 9132T - switch - managed - rack-mountable |
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 8 x 32Gb Fibre Channel SFP+ |
| Routing Protocol | VRRP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, HTTPS, SMI-S, SSH-2, SFTP |
| Features | Auto-sensing per device, ARP support, LDAP support, Syslog support, Access Control List (ACL) support, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Automated Attendant (IVR), 2 fans, In-Service Software Upgrade (ISSU), built-in ASIC, Fabric Configuration Server (FCS), Cisco Inter-Switch Link (ISL), Role-Based Access Control (RBAC), TrustSec support, Power-on self-test (POST), Authentication, Authorization and Accounting (AAA), Read Diagnostic Parameters (RDP), Virtual Machine Identity (VMID) support, Switched Port Analyzer (SPAN), Port-side intake (PSI) |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 1.7 in x 17.3 in x 20.1 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 8 x 32Gb Fibre Channel SFP+ |
| Fibre Channel | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5, FC-GS-7, FC-LS-3 |
| Routing Protocol | VRRP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, HTTPS, SMI-S, SSH-2, SFTP |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS+, LDAP |
| Features | Auto-sensing per device, ARP support, LDAP support, Syslog support, Access Control List (ACL) support, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Automated Attendant (IVR), 2 fans, In-Service Software Upgrade (ISSU), built-in ASIC, Fabric Configuration Server (FCS), Cisco Inter-Switch Link (ISL), Role-Based Access Control (RBAC), TrustSec support, Power-on self-test (POST), Authentication, Authorization and Accounting (AAA), Read Diagnostic Parameters (RDP), Virtual Machine Identity (VMID) support, Switched Port Analyzer (SPAN), Port-side intake (PSI) |
| Status Indicators | Power, system, fan |
| Expansion / Connectivity | |
| Interfaces | 8 x 32Gb Fibre Channel SFP+ LC multi-mode x 2 ¦ 8 x 32Gb Fibre Channel SFP+ Ports on Demand ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 2 x management (Gigabit LAN) RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, EMC, ICES-003 Class A, EN 60825, FCC Part 15 A, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Features | 80 PLUS Platinum efficiency |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 17.3 in |
| Height | 20.1 in |
