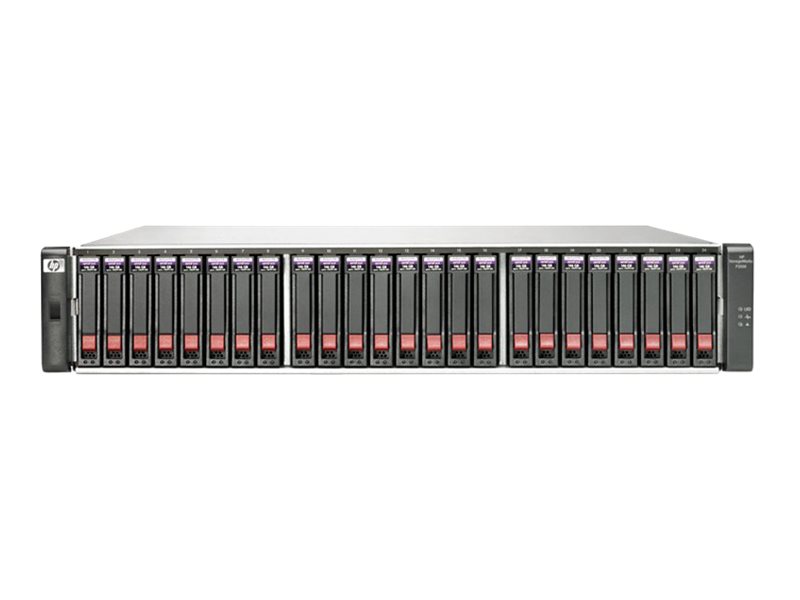

Hewlett Packard Enterprise - HPE Modular Smart Array P2000 G3 FC Dual Controller SFF Modular Smart Array System
Hard drive array - 24 bays (SATA-300 / SAS-2) - HDD x 0 - 8Gb Fibre Channel (external) - rack-mountable - 2U - Smart Buy
Price: $8,894.89
MSRP: $10,638.29
Discount off MSRP: 16.39%
Total Available: 0
Product Description
Additional Details
What's Included
- P2000 G3 MSA FC SFF chassis with (2) Fibre Channel controllers, rails
| Main Specifications | |
|---|---|
| Product Description | HPE Modular Smart Array P2000 G3 FC Dual Controller SFF Modular Smart Array System - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Interface | 8Gb Fibre Channel |
| Maximum LUNs | 512 |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Supported Drives | SATA-300 / SAS-2 |
| Storage Controller | RAID (SATA 3Gb/s / SAS 6Gb/s) - RAID 0, 1, 3, 5, 6, 10, 50 |
| Storage Controller Quantity | 2 |
| Hard Drive | 0 HDD - hot-swap |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, HP OpenVMS, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Oracle Solaris 10, Microsoft Windows Server 2003 (32/64-bits) SP2, Microsoft Windows Server 2003 (32/64-bits) SP1 |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Manufacturer Selling Program | HP Smart Buy |
| Dimensions (WxDxH) | 17.6 in x 20.3 in x 3.5 in |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" SFF |
| Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ¦ 2 x management ¦ 2 x management - RJ-45 ¦ 4 x 8Gb Fibre Channel |
| Miscellaneous | |
| Compliant Standards | VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, AS/NZS, CAN/CSA C22.2 No. 60950-1-03 |
| Manufacturer Selling Program | HP Smart Buy |
| Storage | |
| HDD Array External Interface | 8Gb Fibre Channel |
| Maximum LUNs | 512 |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | RAID (8Gb Fibre Channel) |
| Installed Qty | 2 |
| Interface Type | SATA 3Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Cache / Buffer Size (Max) | 2 GB |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| System Requirements | |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, HP OpenVMS, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Oracle Solaris 10, Microsoft Windows Server 2003 (32/64-bits) SP2, Microsoft Windows Server 2003 (32/64-bits) SP1 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 0 |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 20.3 in |
| Height | 3.5 in |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SATA-300 / SAS-2 |
