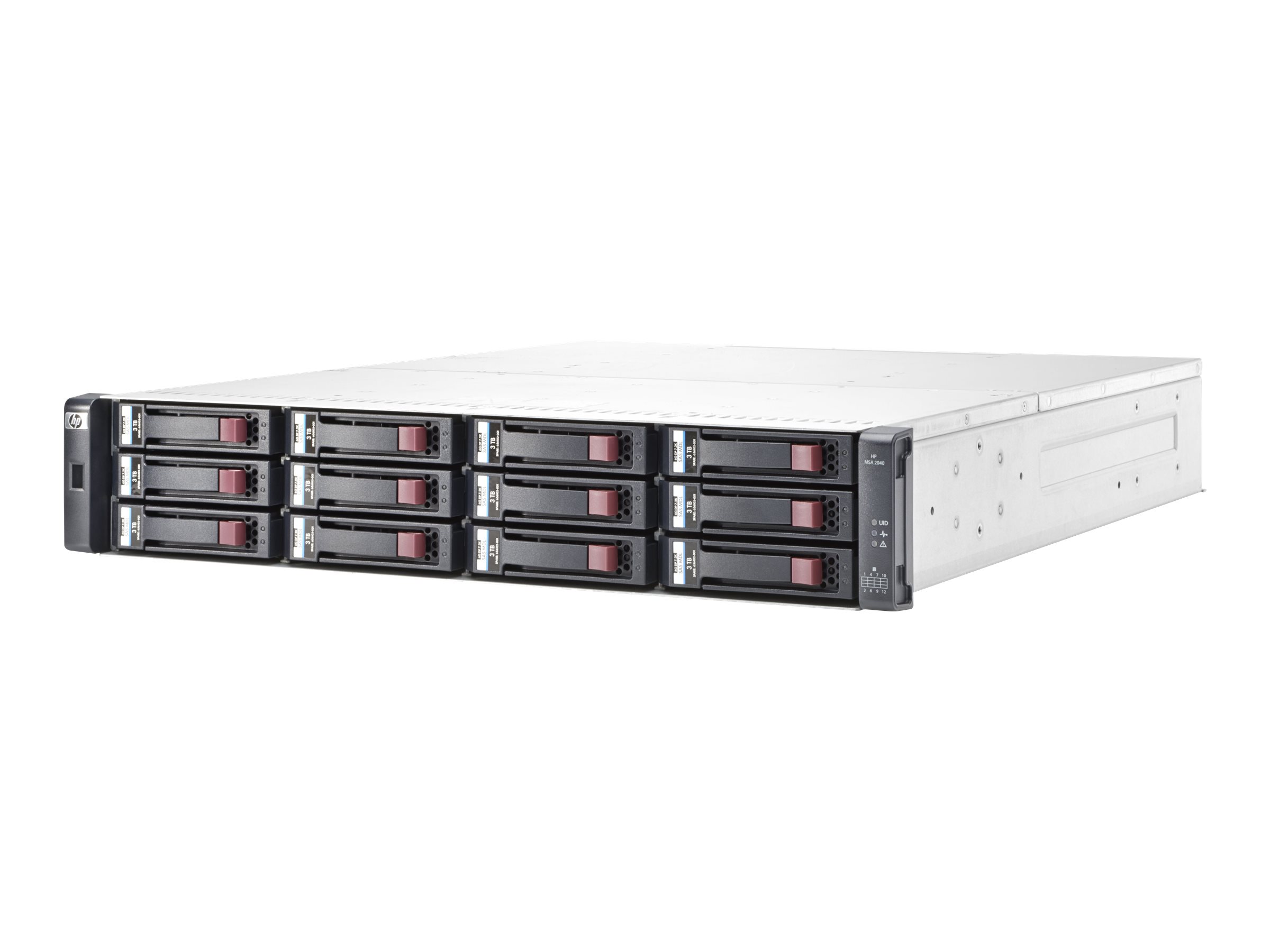

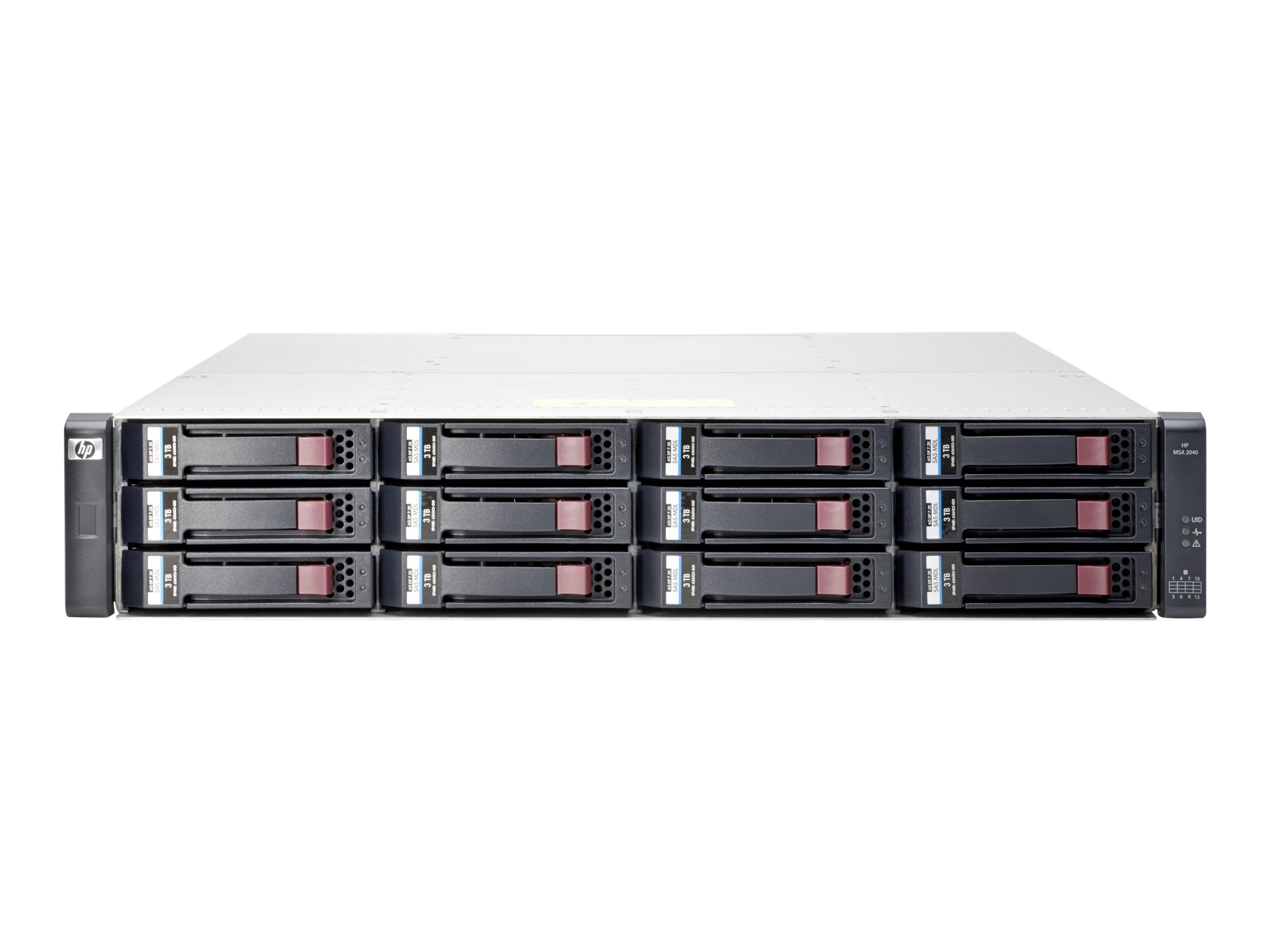

Hewlett Packard Enterprise - HPE Modular Smart Array 2040 SAS Dual Controller LFF Storage
Hard drive array - 12 bays (SAS-2) - SAS 12Gb/s (external) - rack-mountable - 2U
Hewlett Packard Enterprise
K2R83A
0889296409908
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Modular Smart Array 2040 SAS Dual Controller LFF Storage - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Max Supported Capacity | 96 TB |
| Interface | SAS 12Gb/s |
| Maximum LUNs | 512 |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Supported Drives | SAS-2 |
| Storage Controller | RAID (SAS 6Gb/s) - RAID 0, 1, 3, 5, 6, 10, 50 |
| Storage Controller Quantity | 2 |
| Hard Drive | No HDD |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.6 in x 22.5 in x 3.5 in |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) - 3.5" LFF |
| Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ¦ 2 x management ¦ 2 x management - RJ-45 ¦ 8 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A |
| Processor | |
| CPU | No CPU |
| Storage | |
| Max Supported Capacity | 96 TB |
| HDD Array External Interface | SAS 12Gb/s |
| Maximum LUNs | 512 |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dBA |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface Type | SAS 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| System Requirements | |
| OS Required | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 22.5 in |
| Height | 3.5 in |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS-2 |
