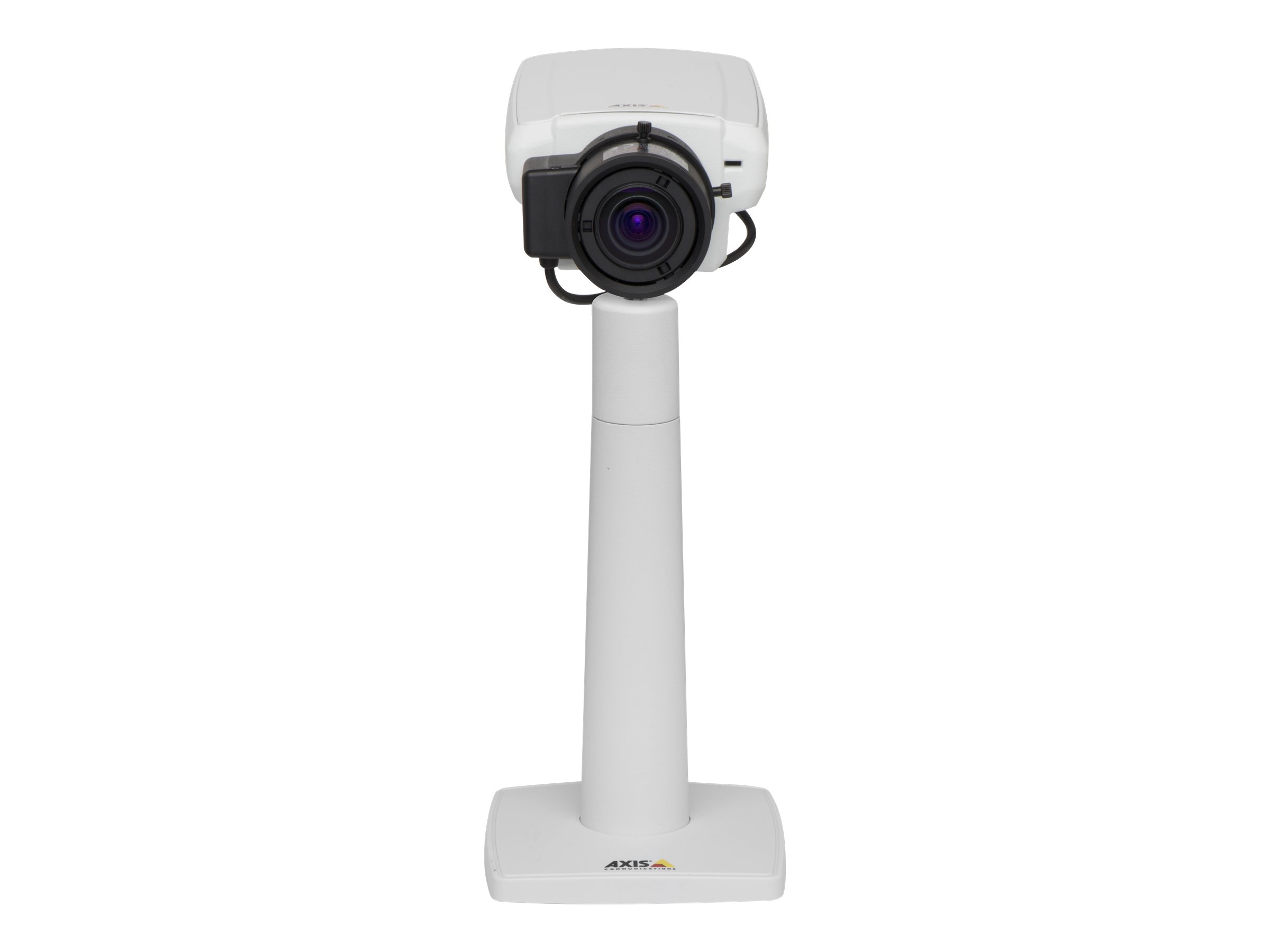

Axis Communications - AXIS P1354 Network Camera
Network surveillance camera - color (Day&Night) - 1.3 MP - 1280 x 960 - 720p - CS-mount - auto iris - vari-focal - audio - LAN 10/100 - MJPEG, H.264, AVC - DC 8 - 28 V / PoE
Axis Communications
0524-001
0754082015680
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS P1354 Network Camera - network surveillance camera |
| Device Type | Network surveillance camera - fixed |
| Audio | Yes: two-way audio capability, built-in microphone |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 3.1 in x 5.9 in x 1.8 in |
| Weight | 22.22 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2.9 x |
| Max Resolution | 1280 x 960 |
| Frame Rate (max) | 30 frames per second |
| Video Modes | 720p |
| Optical Sensor Type | CMOS - 1/3" - 1.3 MP |
| Minimum Illumination | 0.1 lux - color - F1.2 ¦ 0.02 lux - B&W - F1.2 |
| Focal Length Control | Vari-focal |
| Focal Length | 2.8 mm - 8 mm |
| Lens Mounting | CS-mount |
| Focus Adjustment | Automatic |
| Lens Iris | F/1.2 - auto iris (DC) |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Control Interface | RS-485, RS-422 |
| Voltage | DC 8 - 28 V / PoE |
| Features | Motion sensor, backlight compensation, sharpness control, digital image rotation, white balance, color control, progressive scanning, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, infrared cut filter, Privacy Mask Function, multi-streaming, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Audio Detection |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 122 °F; 10 - 85% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 3.1 in |
| Depth | 5.9 in |
| Height | 1.8 in |
| Weight | 22.22 oz |
| Expansion / Connectivity | |

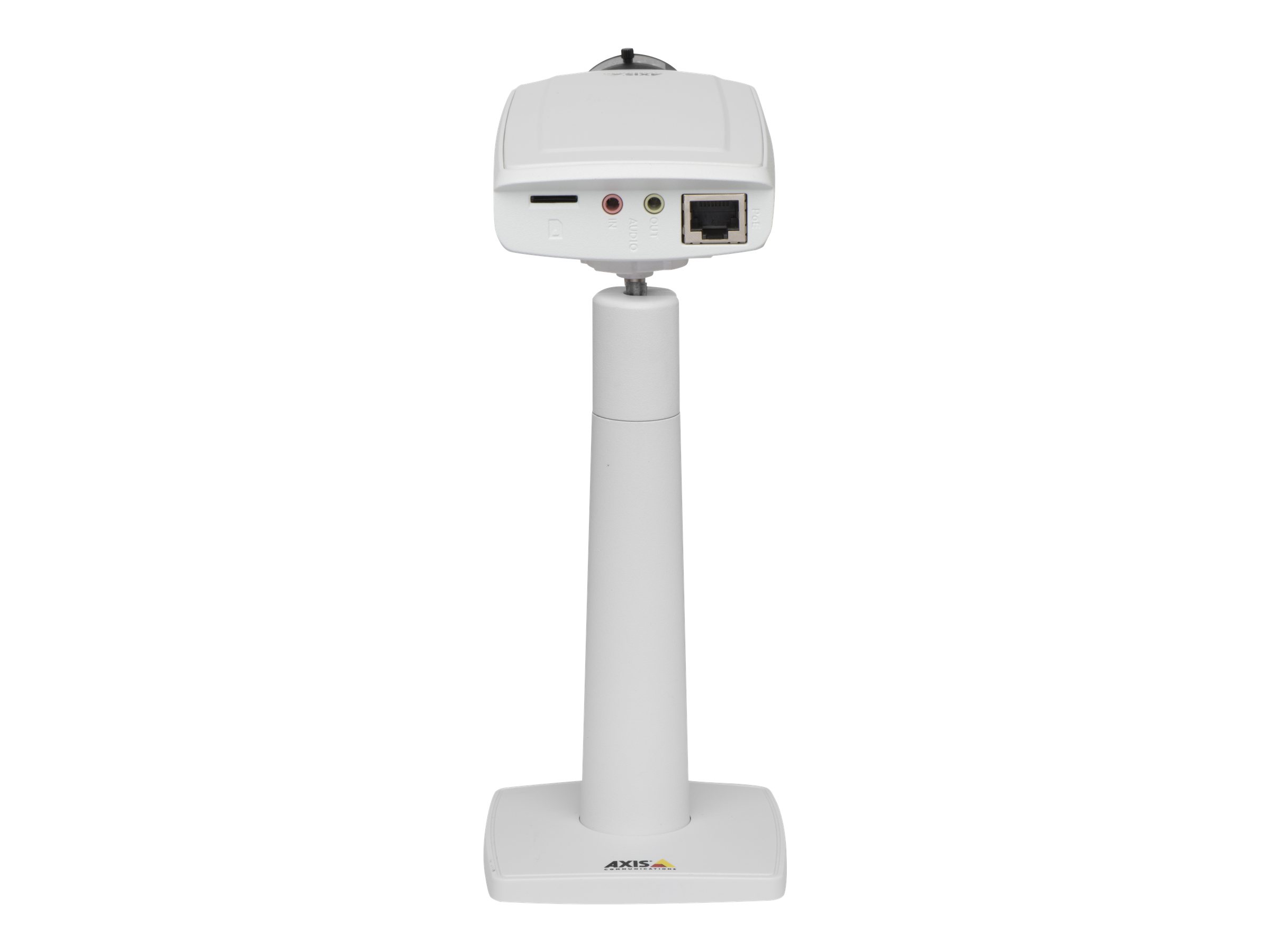

| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm mono jack ¦ Audio line out - 3.5 mm stereo jack ¦ Peripheral - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Stand |
| Compliant Standards | C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class B |
| Color | White |
| Power | |
| Power Requirements | DC 8 - 28 V / PoE |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, AVC |
| Max Digital Video Resolution | 1280 x 960 |
| Video Modes | 720p |
| Exposure Range | 2 sec |
| Minimum Illumination | 0.1 lux - color - F1.2 ¦ 0.02 lux - B&W - F1.2 |
| Digital Video Capture Resolution | 1280 x 960, 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| RAM | 256 MB |
| Flash Memory | 128 MB |
| Features | Motion sensor, backlight compensation, sharpness control, digital image rotation, white balance, color control, progressive scanning, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, infrared cut filter, Privacy Mask Function, multi-streaming, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Audio Detection |
| Lens Construction | |
| Type | CS-mount - vari-focal |
| Optical Zoom | 2.9 x |
| Focal Length | 2.8 mm - 8 mm |
| Lens Iris | F/1.2 auto iris (DC) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 34 - 100 |
| Image Sensor | |
| Type | 1.3 MP CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSL, QOS, CIFS |
| Control Interface | RS-485, RS-422 |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
