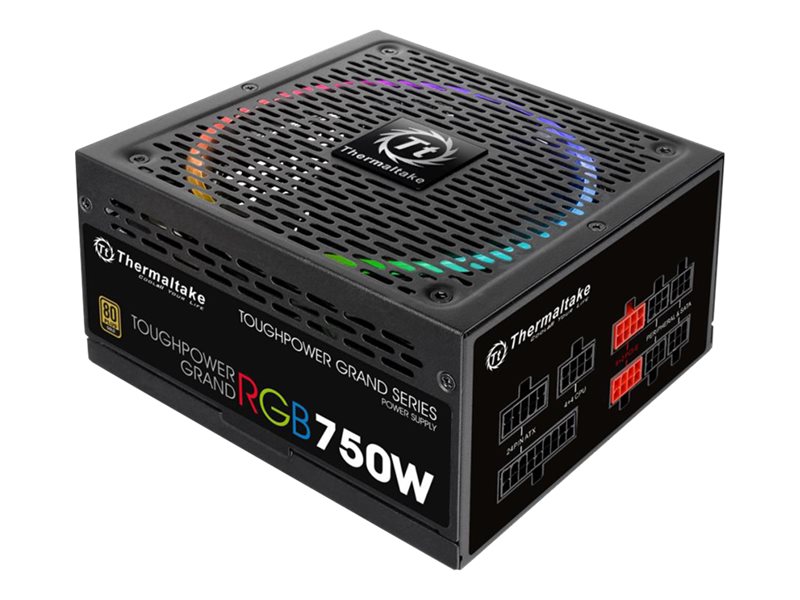

Thermaltake Technology - Thermaltake ToughPower Grand RGB 750W Gold
Power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC - United States - black
Thermaltake Technology
PS-TPG-0750FPCGUS-R
0841163066713
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Thermaltake ToughPower Grand RGB 750W Gold - power supply - 750 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
| 80 PLUS Certification | 80 PLUS Gold |
| Localization | United States |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output connectors | 1 x power 24 pin main output ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 4 pin internal power ¦ 1 x 4 pin mini-power connector ¦ 9 x 15 pin Serial ATA power ¦ 4 x 8 pin PCI Express power |
| Cooling System | 140 mm fan |
| Color | Black |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Color | Black |
| Localization | United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Cooling System | 140 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fully modular |
| Compliant Standards | TUV, BSMI, CCC, FCC, cTUVus, ErP Ready, EAC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin main output ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 4 pin internal power ¦ 1 x 4 pin mini-power connector ¦ 9 x 15 pin Serial ATA power ¦ 4 x 8 pin PCI Express power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +5V - 22 A ¦ +3.3V - 22 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
