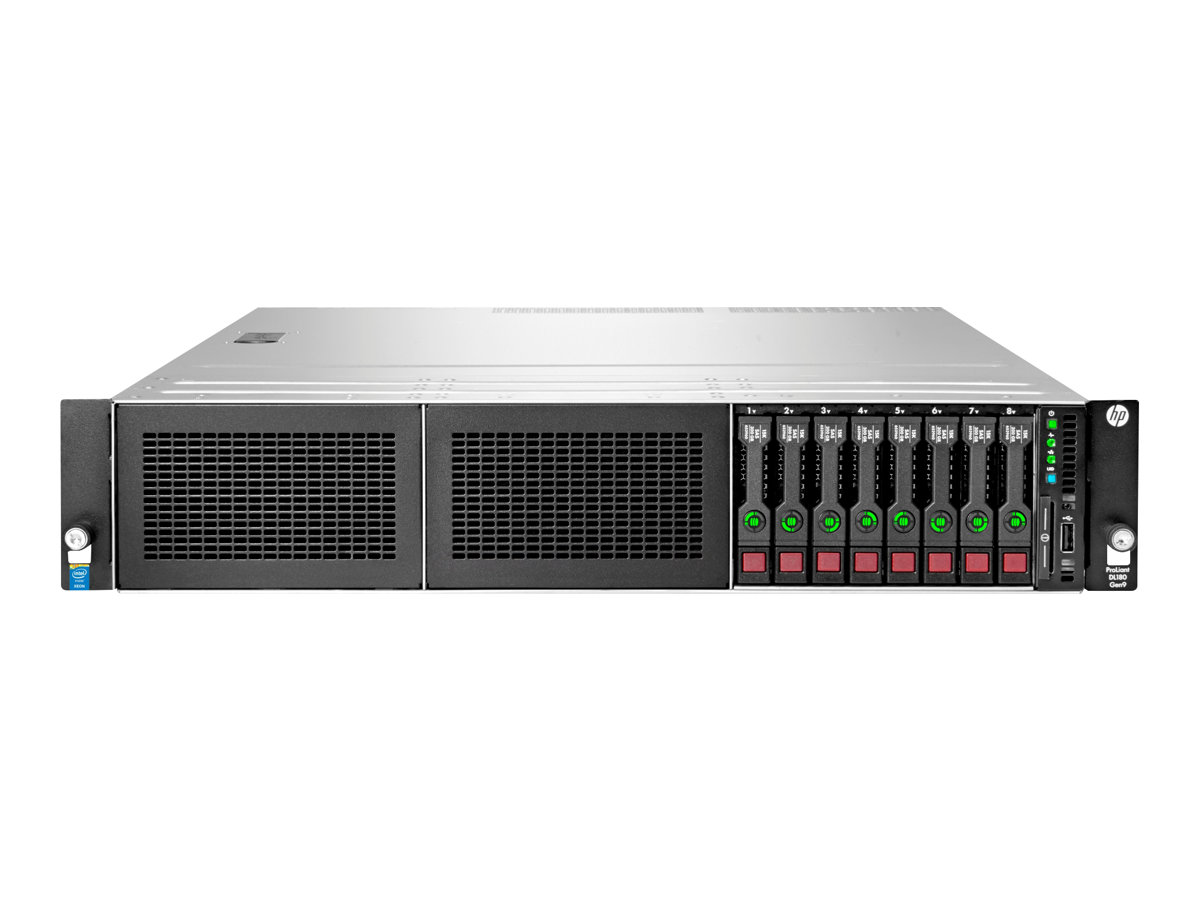

Hewlett Packard Enterprise - HPE ProLiant DL180 Gen9
Server - rack-mountable - 2U - 2-way - 1 x Xeon E5-2609V4 / 1.7 GHz - RAM 32 GB - SATA/SAS - hot-swap 3.5" - no HDD - G200eH2 - GigE - monitor: none - Smart Buy
Hewlett Packard Enterprise
860134-S01
0190017060866
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL180 Gen9 - rack-mountable - Xeon E5-2609V4 1.7 GHz - 32 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5-2609V4 / 1.7 GHz (8-core) |
| Cache Memory | 20 MB L3 cache |
| Cache Per Processor | 20 MB |
| RAM | 32 GB (installed) / 256 GB (max) - DDR4 SDRAM - Advanced ECC - PC4-19200 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) (HP H240 Smart Host Bus Adapter) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200eH2 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 23.9 in x 3.4 in |
| Weight | 36.57 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Manufacturer Warranty | Limited warranty - parts - 3 years - response time: next business day ¦ Limited warranty - labor - 1 year - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x 3.5" LFF ¦ 1 (total) / 1 (free) x external |
| Slots | 2 (total) / 1 (free) x CPU ¦ 16 (total) / 14 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HP iLO - RJ-45 ¦ 1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years - response time: next business day ¦ Limited warranty - labor - 1 year - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | HPE Easy Install Rails |
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, CNS 14336, CNS 13438 |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 32 GB / 256 GB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 1866 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 14 (empty) |
| Features | Registered, HP SmartMemory |
| Configuration Features | 2 x 16 GB |
| RAM Supported | PC4-19200 - 256 GB registered - ECC ¦ PC4-19200 - 512 GB Load-Reduced - ECC |
| Networking | |
| Interface (Bus) Type | PCI Express 2.0 x2 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | HP 361i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights Out Management (ILOM) |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Power | |
| Device Type | Power supply |
| Installed Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 900 Watt |
| Efficiency | 89% |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Sound Emission | 39 dBA |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HP H240 Smart Host Bus Adapter |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Cache Memory | |
| Installed Size_old | L3 cache - 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200eH2 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 23.9 in |
| Height | 3.4 in |
| Weight | 36.57 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2609V4 / 1.7 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C612 |
