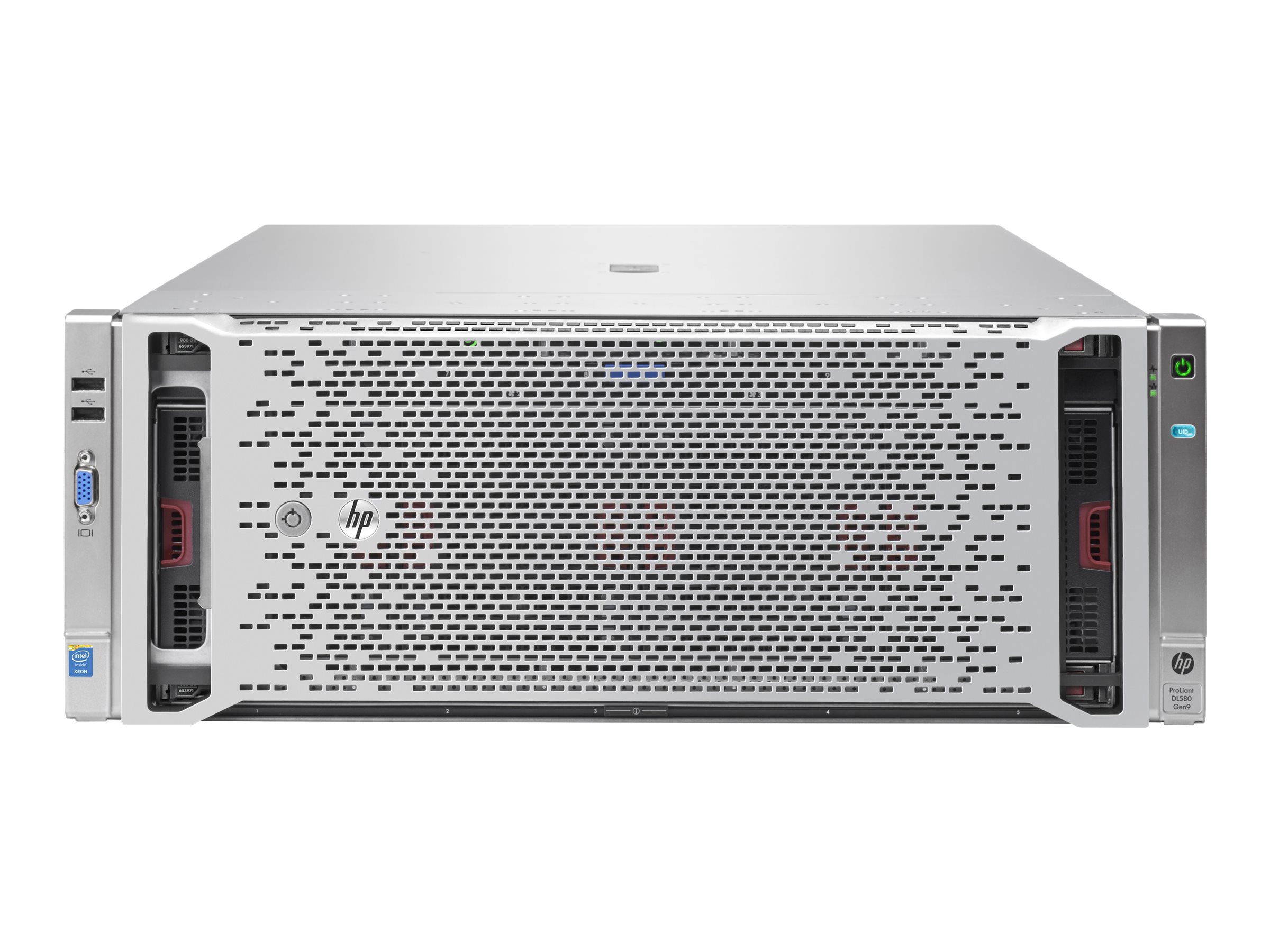

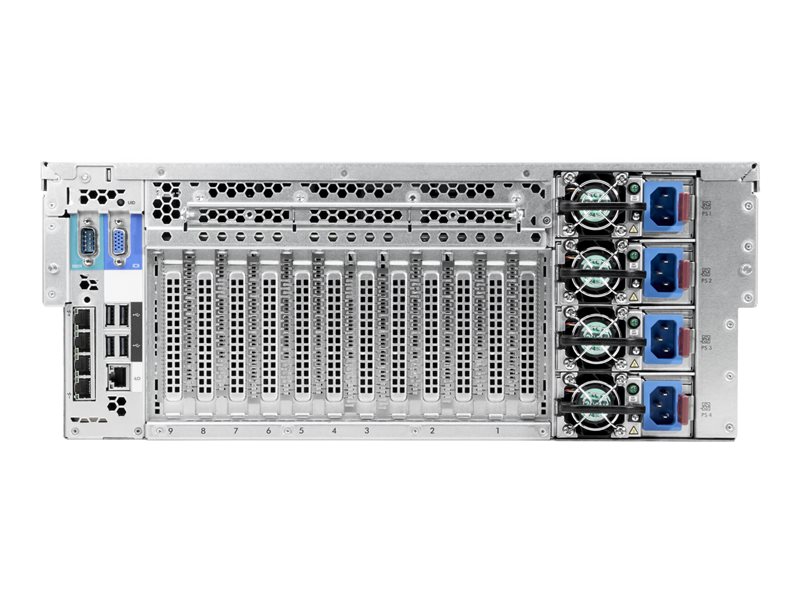

Hewlett Packard Enterprise - HPE ProLiant DL580 Gen9
Server - rack-mountable - 4U - 4-way - 2 x Xeon E7-8880V3 / 2.3 GHz - RAM 128 GB - SAS - hot-swap 2.5" - no HDD - Matrox G200 - GigE - monitor: none - Smart Buy
Hewlett Packard Enterprise
793309-S01
0888793733882
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL580 Gen9 - rack-mountable - Xeon E7-8880V3 2.3 GHz - 128 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 4U |
| Server Scalability | 4-way |
| Processor | 2 x Intel Xeon E7-8880V3 / 2.3 GHz (3.1 GHz) (18-core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 90 MB L3 cache |
| Cache Per Processor | 45 MB |
| RAM | 128 GB (installed) / 6 TB (max) - DDR4 SDRAM |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 2.0 x4 (Smart Array P830i with 2GB FBWC) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 29 in x 6.9 in |
| Weight | 70.94 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 4U |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Server Scalability | 4-way |
| Hot-Swap Bays Qty | 10 |
| Expansion / Connectivity | |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" SFF |
| Slots | 96 (total) / 80 (free) x DIMM 288-pin ¦ 4 (total) / 2 (free) x CPU ¦ 5 (total) / 5 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 4 (total) / 4 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card |
| Interfaces | 1 x serial ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x HP iLO ¦ 8 x USB 2.0 (2 front, 4 rear, 2 internal) ¦ 2 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Features | Administrator password, power-on password, keyboard password, serial port I/O control, USB port control |
| Compliant Standards | ACPI 2.0, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 128 GB / 6 TB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 1866 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 96 (total) / 80 (empty) |
| Features | Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory |
| Configuration Features | 16 x 8 GB |
| Networking | |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | HP 331FLR |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 4 |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 4 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 1200 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - PCIe 2.0 x4 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | Smart Array P830i with 2GB FBWC |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 2 GB |
| Cache Memory | |
| Installed Size_old | L3 cache - 90 MB |
| Cache Per Processor | 45 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 29 in |
| Height | 6.9 in |
| Weight | 70.94 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E7-8880V3 / 2.3 GHz |
| Max Turbo Speed | 3.1 GHz |
| Number of Cores | 18-core |
| CPU Qty | 2 |
| Max CPU Qty | 4 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C602J |
