Intel - Intel Next Unit of Computing Kit NUC7I3BNHXF
Mini PC - 1 x Core i3 7100U / 2.4 GHz - RAM 4 GB - HDD 1 TB - HD Graphics 620 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 4.2 - Win 10 Home 64-bit - monitor: none
Intel
BOXNUC7I3BNHXF
0735858351102
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Intel Next Unit of Computing Kit NUC7I3BNHXF - mini PC - Core i3 7100U 2.4 GHz - 4 GB - HDD 1 TB |
| Type | Personal computer - mini PC |
| Processor | Intel Core i3 (7th Gen) 7100U / 2.4 GHz (Dual-Core) |
| Processor Main Features | Hyper-Threading Technology, Intel Execute Disable Bit, Enhanced Intel SpeedStep Technology, Intel Virtualization Technology, Intel 64 Technology, Intel AES New Instructions |
| Cache Memory | 3 MB L3 cache |
| Cache Per Processor | 3 MB |
| RAM | 4 GB (installed) / 32 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | HDD 1 TB - SATA 6Gb/s |
| SSD Cache | 3D Xpoint (Optane) - 16 GB |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel HD Graphics 620 |
| Audio Output | 7.1 channel surround |
| Networking | GigE, 802.11a, 802.11b/g/n, 802.11ac, Bluetooth 4.2 |
| OS Provided | Windows 10 Home 64-bit Edition |
| Dimensions (WxDxH) | 4.5 in x 4.4 in x 2 in |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Built-in Devices | Infrared receiver |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x internal M.2 2242/2280 ¦ 1 (total) / 0 (free) x internal 2.5" |
| Slots | 2 (total) / 1 (free) x SO-DIMM 260-pin |

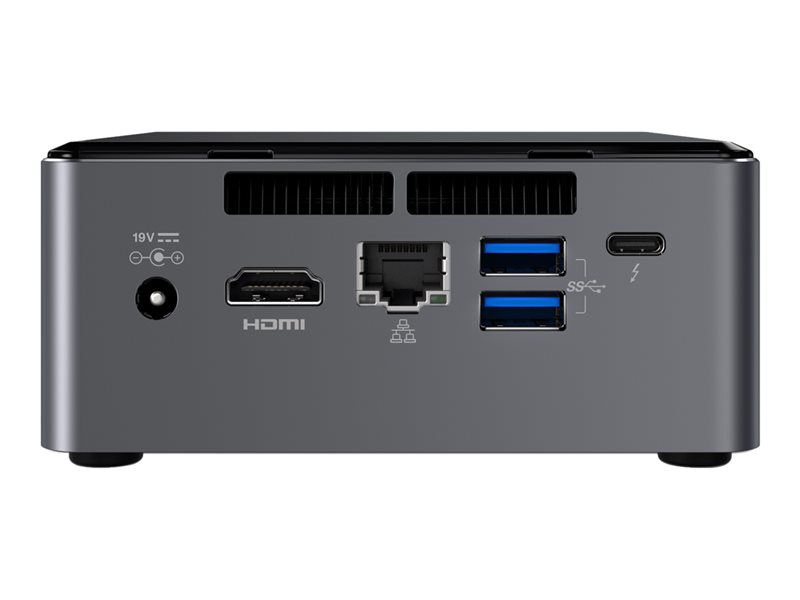

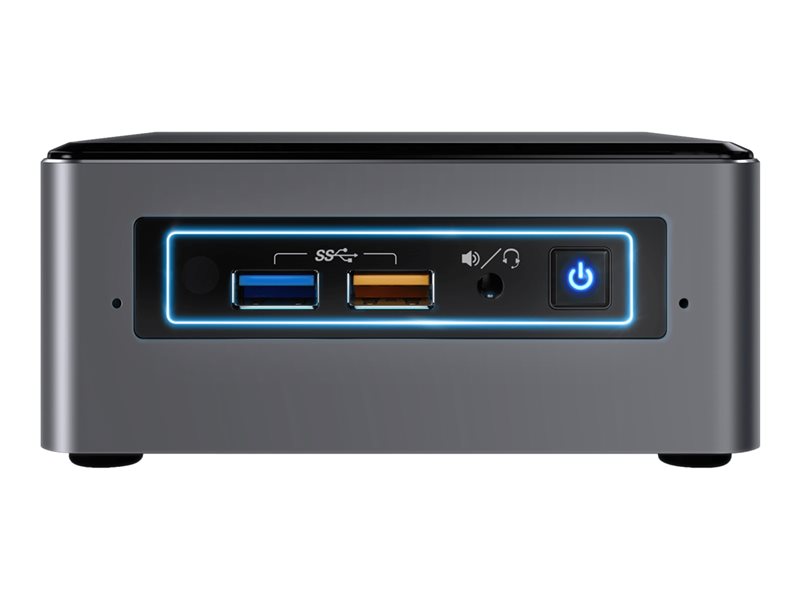

| Interfaces | 4 x USB 3.0 - Type A (2 front, 2 rear) (one of them is fast-charging) ¦ 2 x USB 2.0 (2 internal) ¦ 1 x HDMI ¦ 1 x headphones/microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x DisplayPort/USB-C 3.1 Gen 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ICES-003, EN55024, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, WEEE, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, VCCI V-2, EN 62311, VCCI V-4, Directive 2012/19/EU, Directive 2011/65/EU, KN24, China RoHS, CNS 13438, ETSI EN 301 489-17, KN32, ETSI EN 301 489-1, ETSI EN 301 893, AS/NZS 2772.2, FCC CFR47 Part 15 E, CISPR 32, EN 55032, ETSI EN 301 328, CAN/CSA-C22.2 No. 60950-1 |
| RAM | |
| Installed Size | 4 GB / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 1 x 4 GB |
| Networking | |
| Ethernet Controller | Intel I219-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 8265 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | L3 cache - 3 MB |
| Cache Per Processor | 3 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 3 |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Home 64-bit Edition |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 1 TB |
| SSD Cache | 3D Xpoint (Optane) - 16 GB |
| Interface Type | SATA 6Gb/s |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 4.4 in |
| Height | 2 in |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SDXC UHS-I Memory Card |
| Processor / Chipset | |
| CPU | Intel Core i3 (7th Gen) 7100U / 2.4 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Execute Disable Bit, Enhanced Intel SpeedStep Technology, Intel Virtualization Technology, Intel 64 Technology, Intel AES New Instructions |
