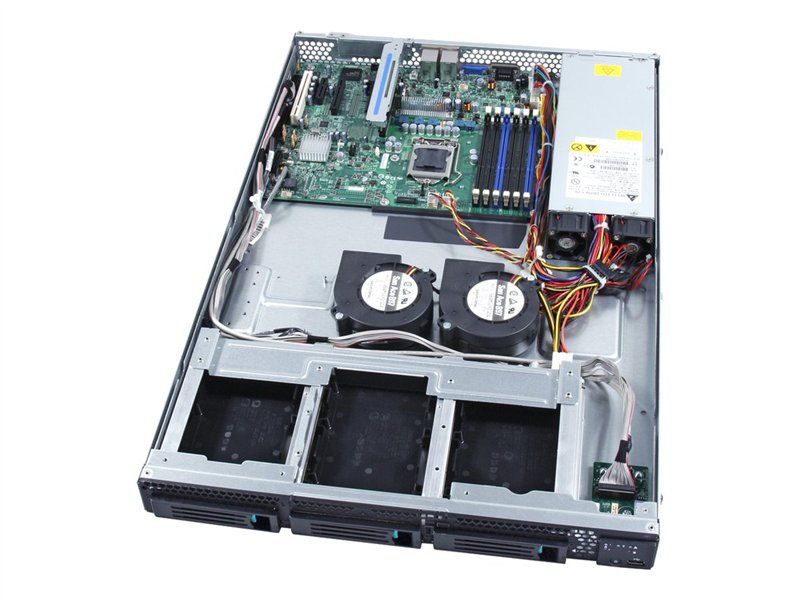

Intel - Intel Server System SR1695GPRX
Server - rack-mountable - 1U - RAM 0 MB - SATA 3.5" - no HDD - ServerEngines Pilot II - GigE - monitor: none
Intel
SR1695GPRX1AC
0735858222129
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Intel Server System SR1695GPRX - rack-mountable - no CPU - 0 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Processor | No CPU |
| Processor Socket | LGA1156 Socket |
| RAM | 0 GB (installed) / 32 GB (max) - DDR3 SDRAM - ECC |
| Storage Controller | SATA (SATA 3Gb/s) |
| Server Storage Bays | 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ServerEngines Pilot II |
| Video Memory | 64 MB DDR2 SDRAM |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.8 in x 26.4 in x 1.7 in |
| Weight | 21.83 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
| Slots | 1 (total) / 1 (free) x CPU ¦ 8 (total) / 8 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 |
| Interfaces | 5 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x serial ¦ 4 x USB 2.0 (2 front, 2 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | System fan, rack mounting kit, PCI Express riser card, CPU Heatsink, air duct, front control panel |
| Compliant Standards | VCCI, BSMI, EN 61000-3-2, EN55022, GS, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EMC, FCC Part 15, FCC, IRAM, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, GOST-R, CSA C22.2 No. 60950-1 |
| RAM | |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR3 SDRAM - ECC |
| Form Factor | DIMM 240-pin |
| Slots | 8 (total) / 8 (empty) |
| Features | Unbuffered, registered |
| Networking | |
| Ethernet Ports | 5 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel 82576, Intel 82574L |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Intel Baseboard Management Controller (BMC) |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 400 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x SATA - integrated |
| Controller Interface Type | SATA 3Gb/s |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ServerEngines Pilot II |
| Video Memory | 64 MB DDR2 SDRAM |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.8 in |
| Depth | 26.4 in |
| Height | 1.7 in |
| Weight | 21.83 lbs |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1156 Socket |
| Chipset Type | Intel 3420 |
