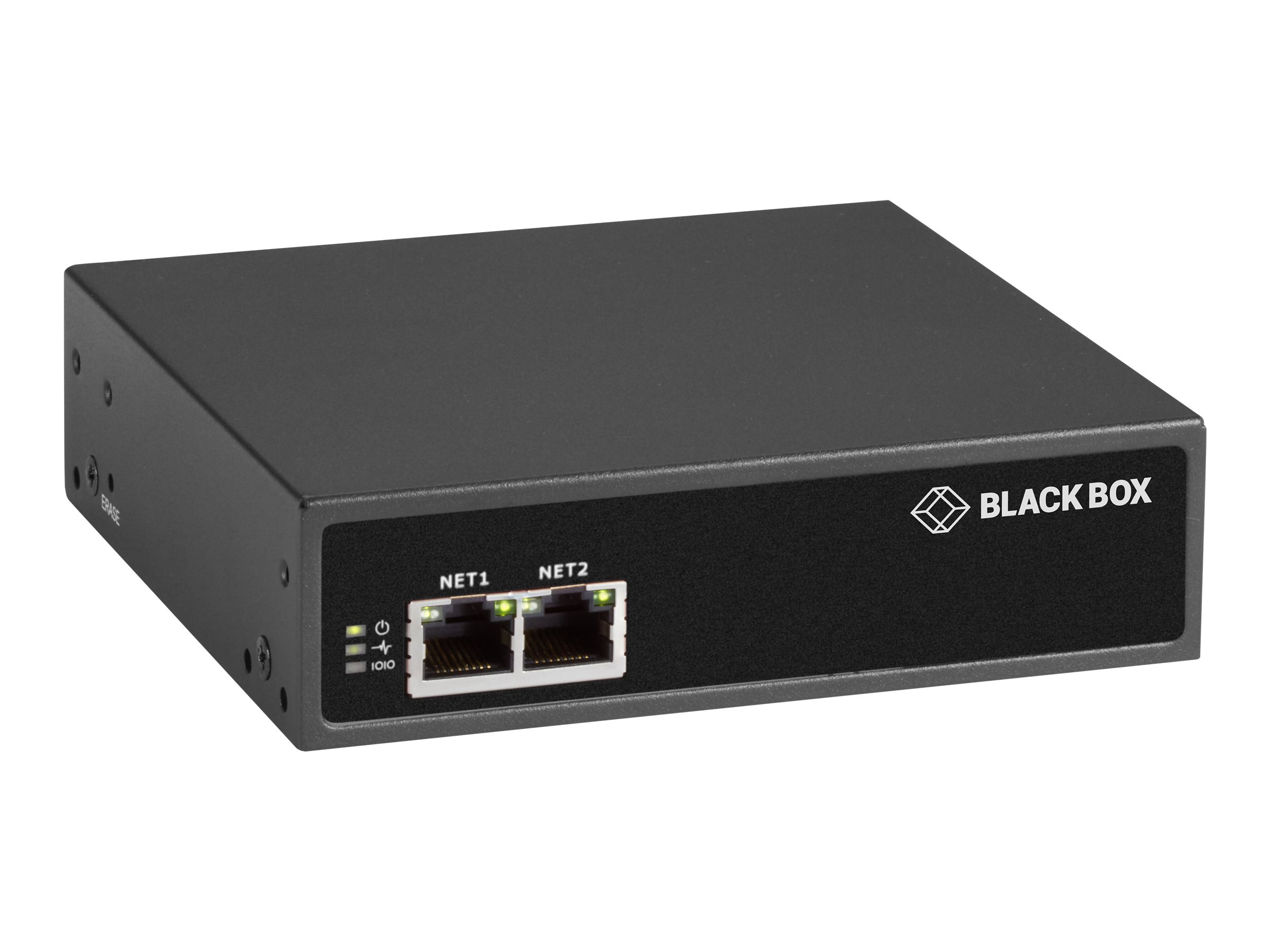

Console server - 4 ports - RS-232
| Main Specifications | |
|---|---|
| Product Description | Black Box LES1600 Series LES1604A - console server |
| Device Type | Console server |
| Form Factor | External |
| Processor | 1 x ARM ARMADA 370 - 800 MHz |
| RAM | 256 MB |
| Ports Qty | 4 |
| Data Link Protocol | RS-232 |
| Included Accessories | 4 rubber feet, rack mount kit |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 4.7 in x 1.4 in x 5.1 in |
| General | |
| Device Type | Console server |
| Width | 4.7 in |
| Depth | 1.4 in |
| Height | 5.1 in |
| Expansion / Connectivity | |

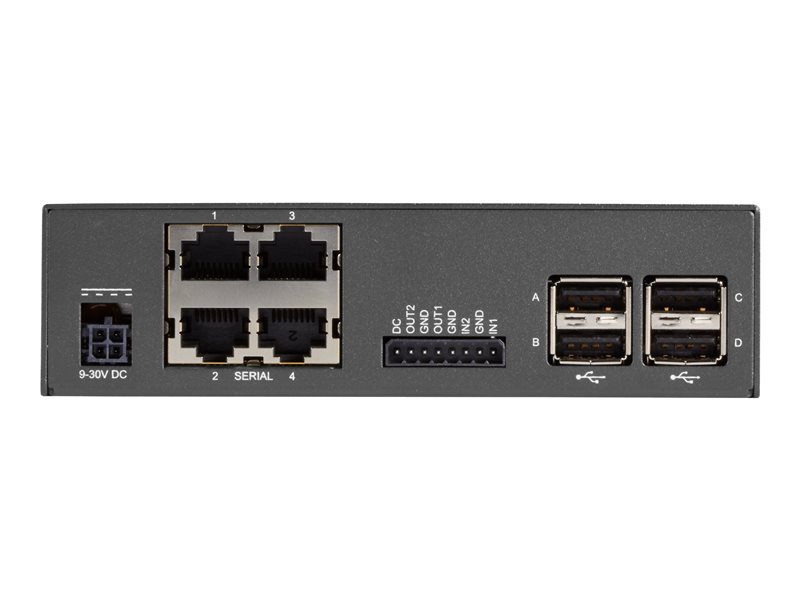

| Interfaces | 4 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 4 x management (USB) |
| Miscellaneous | |
| Included Accessories | 4 rubber feet, rack mount kit |
| Cables Included | 1 x serial adapter |
| Compliant Standards | TUV, C-Tick, UL 1950, FCC Part 15 B, CCC, RoHS, FIPS 140-2, IEC 61000-3-3:2008, EN 61000-3-2:2006+A2:2009, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, CISPR 24:2010, EN 55024:2010, EN 61000-4-8:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, ICES-003 issue 5, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010 |
| Networking | |
| Form Factor | External |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Network / Transport Protocol | NTP |
| Remote Management Protocol | SNMP, SSH |
| Features | LLDP support, IP Security (IPSec) support, Zero-touch provisioning (ZTP), Virtual Central Management System (VCMS) |
| Encryption Algorithm | AES |
| Authentication Method | Kerberos, RADIUS, TACACS+, LDAP, Active Directory |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 11.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% |
| Processor / Memory / Storage | |
| Processors Installed | 1 x ARM ARMADA 800 MHz |
| Max Supported Qty | 1 |
| RAM | 256 MB DDR3 SDRAM |
