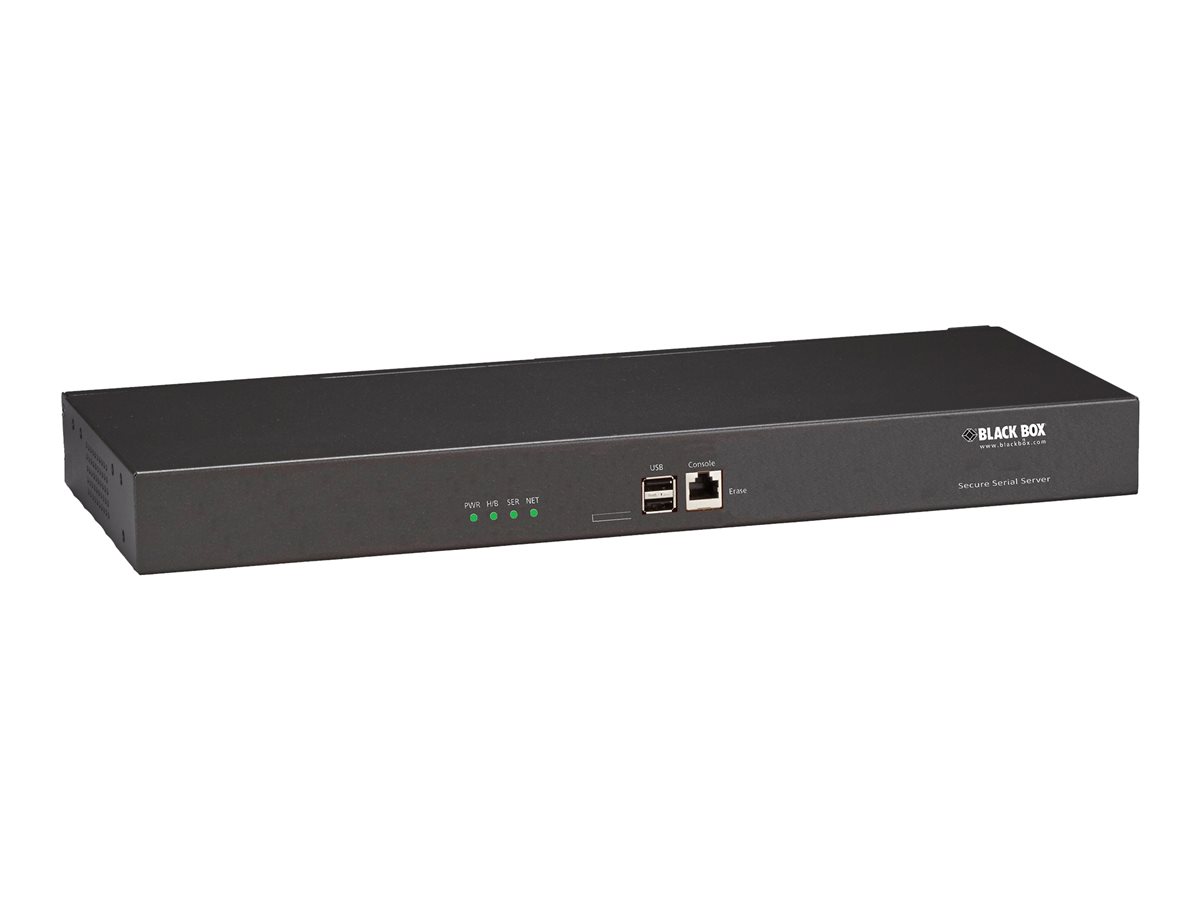

Console server - 16 ports - 100Mb LAN, RS-232 - 1U
| Main Specifications | |
|---|---|
| Product Description | Black Box Secure Serial Server Cisco Pinout - console server |
| Device Type | Console server |
| Form Factor | External - 1U |
| Processor | 1 x 800 MHz |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Ports Qty | 16 |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 6.9 in x 1.8 in |
| Weight | 8.82 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 6.9 in |
| Height | 1.8 in |
| Weight | 8.82 lbs |
| Expansion / Connectivity | |
| Interfaces | 16 x RS-232 - RJ-45 ¦ 2 x 100Base-TX - RJ-45 ¦ 2 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 2 x patch cable |
| Compliant Standards | TUV, C-Tick, UL 1950, RoHS, FIPS 140-2 |
| Networking | |
| Form Factor | External |
| Ports Qty | 16 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, IPSec |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH, SSH-2 |
| Features | DHCP server, 4KV ESD Protector |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), LDAP |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 4.2 Watt |
| Software / System Requirements | |
| OS Provided | Linux |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x 800 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 4 GB |
