STARTECH.COM - StarTech.com Gigabit Ethernet to SC Fiber Media Converter

1000Base-LX - Single-mode - 10 km - Fiber media converter - 100Mb LAN - 1000Base-LX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 6.2 miles - 1310 nm

STARTECH.COM
MCMGBSCSM10
0065030878241
N/A
New

Price: $90.26

Total Available: 412

Product Description

Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber

  • Converts and extends a Gigabit fiber (1000 Mbps) network over single-mode fiber on 1000BASE-LX networks
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

Applications

Extend an Ethernet connection by up to 10 km (6.2 miles) over a fiber backbone

Create an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber-optic networks/backbones

Converts Ethernet to fiber, and fiber to copper to provide a cost-effective networking solution

Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber. This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Extend your GbE network cost effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub networks to larger fiber optic networks.

Reliable and scalable network connectivity

The media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimal network scalability for connecting two or more Ethernet network nodes.

Additional Details

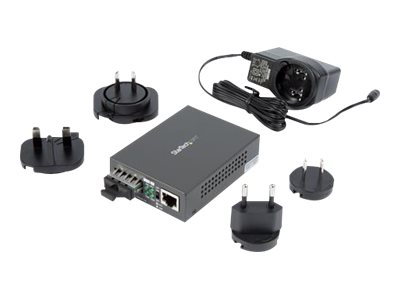

What's Included

  • media converter
  • universal power adapter (NA/JP, UK, EU, ANZ)
  • quick-start guide

Specifications

Main Specifications
Product Description StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km (MCMGBSCSM10) - fiber media converter - 10Mb LAN, 100Mb LAN
Device Type Fiber media converter - RJ-45 / SC single-mode
Form Factor External
Cabling Type 1000Base-LX, 100Base-TX, 1000Base-T
Data Transfer Rate 1 Gbps
Optical Wave Length 1310 nm
Data Link Protocol 10Mb LAN, 100Mb LAN
Max Transfer Distance 6.2 miles
Power AC 100 - 240 V
Dimensions (WxDxH) 2.8 in x 3.8 in x 1 in
Weight 7.05 oz
Manufacturer Warranty 2-year warranty
General
Device Type Fiber media converter
Form Factor External
Expansion / Connectivity
Interfaces 1 x Ethernet 100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female x 2
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Miscellaneous
MTBF 50,000 hours
Compliant Standards cUL, FCC, RoHS, WEEE
Networking
Connectivity Technology Wired
Cabling Type 1000Base-LX, 100Base-TX, 1000Base-T
Data Link Protocol 10Mb LAN, 100Mb LAN
Data Transfer Rate 1 Gbps
Optical Wave Length 1310 nm
Max Transfer Distance 6.2 miles
Status Indicators Port duplex mode, power, link/activity
Features Auto-uplink (auto MDI/MDI-X), full duplex mode, surge protection, 9 KB Jumbo Frame
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Power
Power Device External power adapter
Voltage Required AC 100 - 240 V
Power Consumption Operational 5 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 - 90%
Dimensions & Weight
Width 2.8 in
Depth 3.8 in
Height 1 in
Weight 7.05 oz
