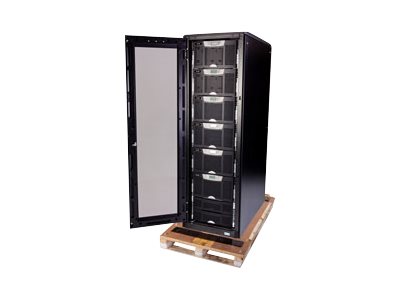

Eaton Corporation - Eaton BladeUPS
UPS - AC 208 V - 24 kW - RS-232 - output connectors: 1 - black
Eaton Corporation
ZP232150XXXX100
0743172082572
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton BladeUPS - UPS - 24 kW |
| Device Type | UPS - external |
| Weight | 1048.07 lbs |
| Input Voltage | AC 208 V |
| Output Voltage | AC 120/208 V |
| Power Capacity | 24 kW |
| Input Connectors | 1 x hardwire |
| Output connectors | 1 x hardwire 4-wire (3PH + G) |
| Networking | RS-232 |
| Included Accessories | Power Xpert Gateway UPS Card |
| Color | Black |
| Dimensions (WxDxH) | 24 in x 42 in x 81 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | UPS - external |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 3 x management (RS-232) ¦ 3 x EPO (emergency power off) |
| Expansion Slots | 3 (total) / 2 (free) x Communication slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Power Xpert Gateway UPS Card |
| Cables Included | Serial cable |
| Rack Mounting Kit | Included |
| Features | Advance Battery Management (ABM), audible alarm, LCD display, built-in maintenance bypass, LED indicators, Remote Emergency Power Off (REPO), hot-swappable batteries |
| Compliant Standards | UL, cUL, UL 1778, FCC Part 15 A, Directive 2002/95/EC, UL 6950 |
| Networking | |
| Remote Management Interface | RS-232 |
| Software / System Requirements | |
| Software Included | Eaton Intelligent Power Software Suite |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 49 - 95% (non-condensing) |
| Sound Emission | 60 dBA |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 180 - 265 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 1 x hardwire 4-wire (3PH + G) |
| Output Voltage | AC 120/208 V |
| Power Capacity | 24 kW |
| Power Factor (PF) | 0.95 |
| Dimensions & Weight | |
| Width | 24 in |
| Depth | 42 in |
| Height | 81 in |
| Weight | 1048.07 lbs |
