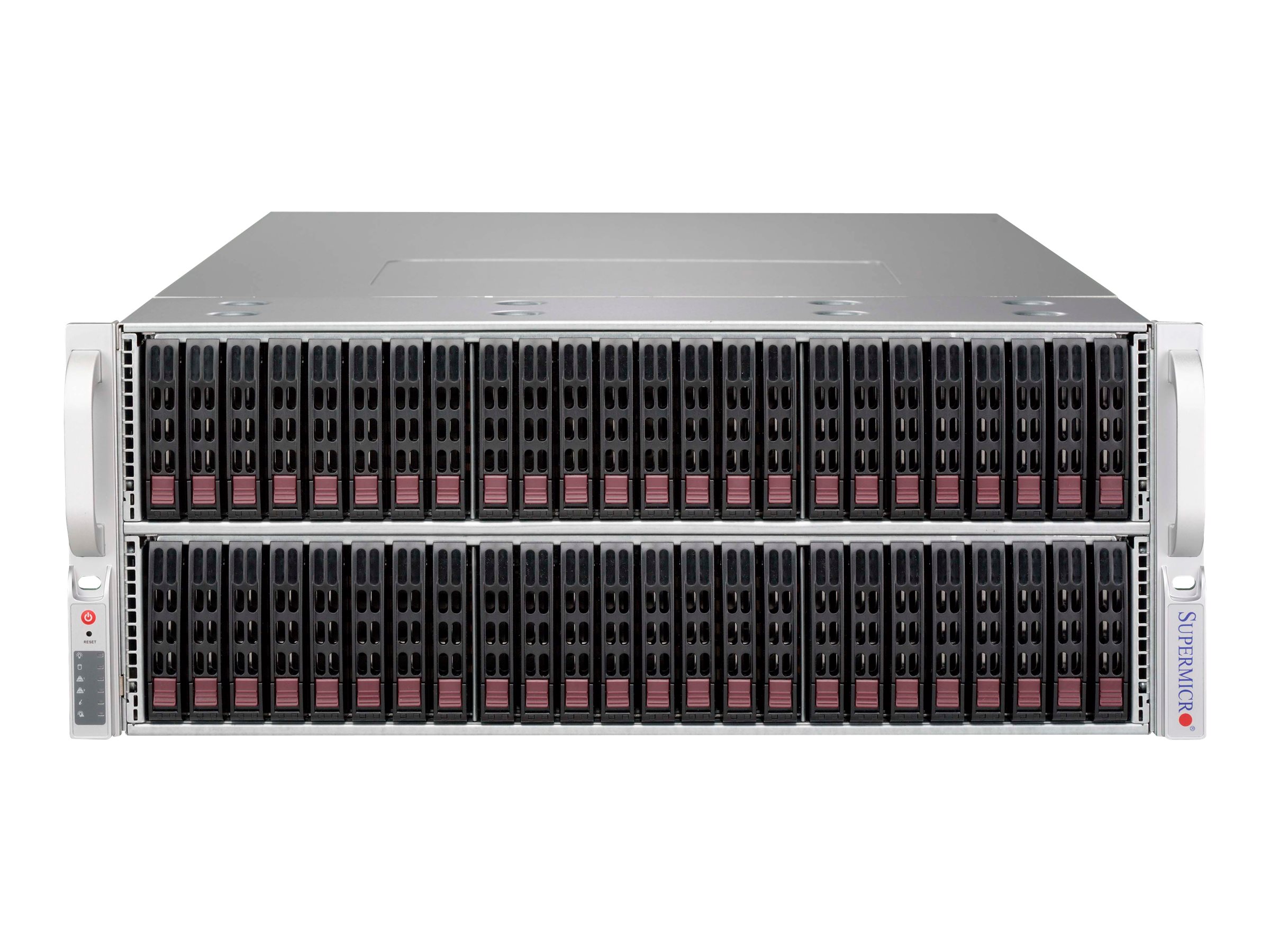

Super Micro Computer - Supermicro SC417 BE1C-R1K28LPB
Rack-mountable - 4U - enhanced extended ATX - SATA/SAS - hot-swap 1280 Watt - black
Super Micro Computer
CSE-417BE1C-R1K28LPB
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Supermicro SC417 BE1C-R1K28LPB - rack-mountable - 4U - enhanced extended ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 4U |
| Color | Black |
| Supported Motherboards | Extended ATX, enhanced extended ATX |
| Server Storage Bays | SATA/SAS - hot-swap |
| System Cabinet Features | Chassis intrusion detection |
| Power Device | Power supply 1280 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.2 in x 27.5 in x 7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Form Factor | Rack-mountable - 4U |
| Max Mainboard Size | Enhanced extended ATX |
| Supported Motherboards | Extended ATX, enhanced extended ATX |
| Hot-Swap Bays Qty | 72 |
| Server Swappable Drive Interface | SATA/SAS |
| Color | Black |
| Cooling System | Internal: 80 mm fan x 7 / Pulse-width modulation (PWM) support, hot-swap, redundant |
| System Cabinet Features | Chassis intrusion detection |
| Expansion / Connectivity | |
| Expansion Bays | 72 (total) / 72 (free) x hot-swap - 2.5" |
| Expansion Slots | 7 x low-profile |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, TUV, cUL, EN 60950, IEC 60950, CCC |
| Power | |
| Power Device | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 1280 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 27.5 in |
| Height | 7 in |
