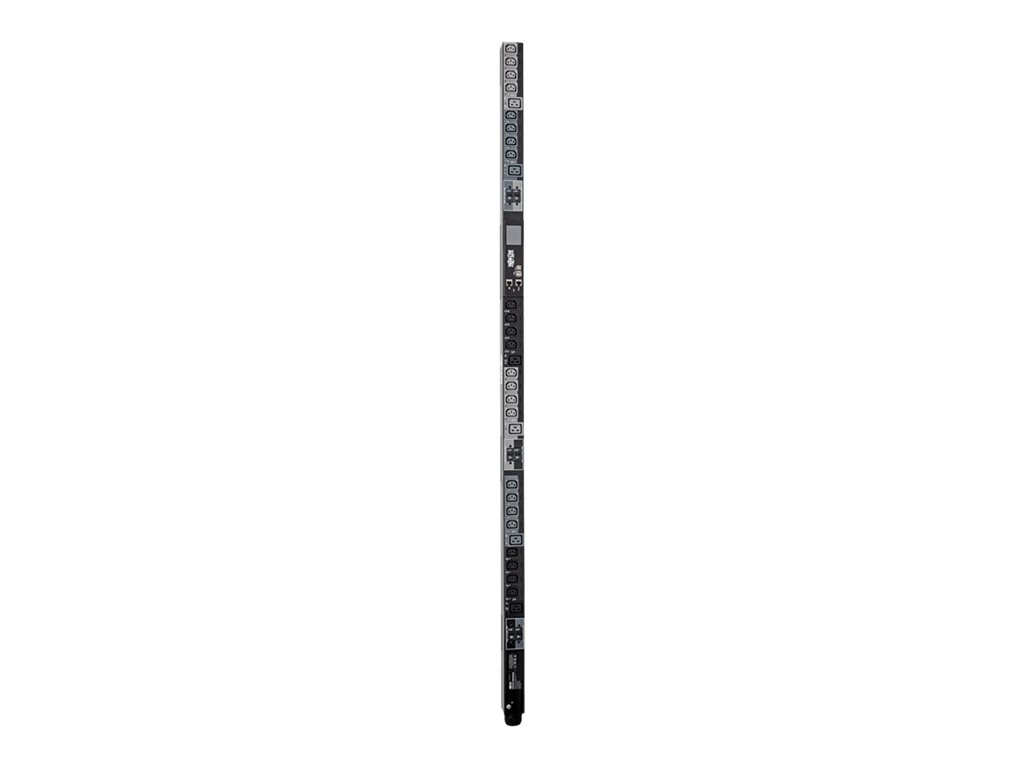

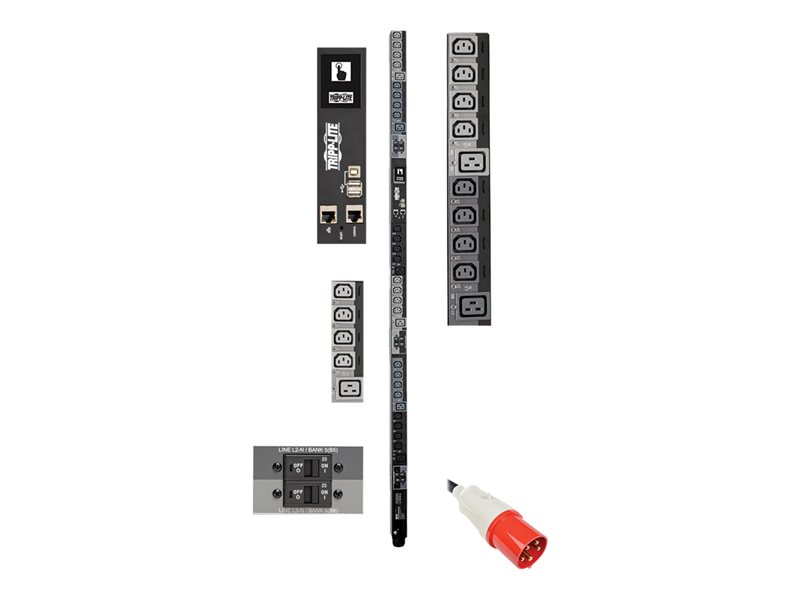

Tripp Lite - Tripp Lite 27.7kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 63A Red 380/400V, 0U, TAA
Power distribution unit (rack-mountable) - 40 A - AC 380/400 V - 27.7 kW - 3-phase - Ethernet 10/100, USB - input: IEC 60309 63A - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13) - 0U - 6 ft - TAA Compliant
Tripp Lite
PDU3XEVSR6G63B
0037332195432
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite 27.7kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 63A Red 380/400V, 0U, TAA - power distribution unit - 27.7 kW |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 6 ft |
| Rack Size | 0U |
| Weight | 17.7 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 380/400 V |
| Output Voltage | AC 220-230 V |
| Power Capacity | 27.7 kW |

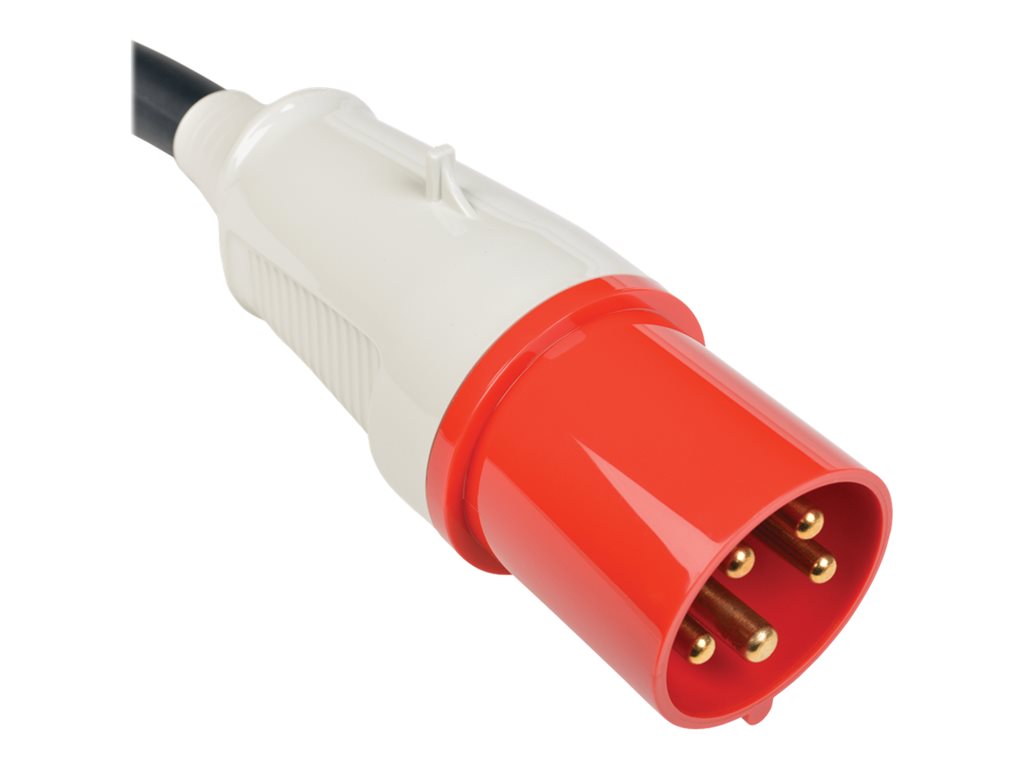

| Input Connectors | 1 x power IEC 60309 63A |

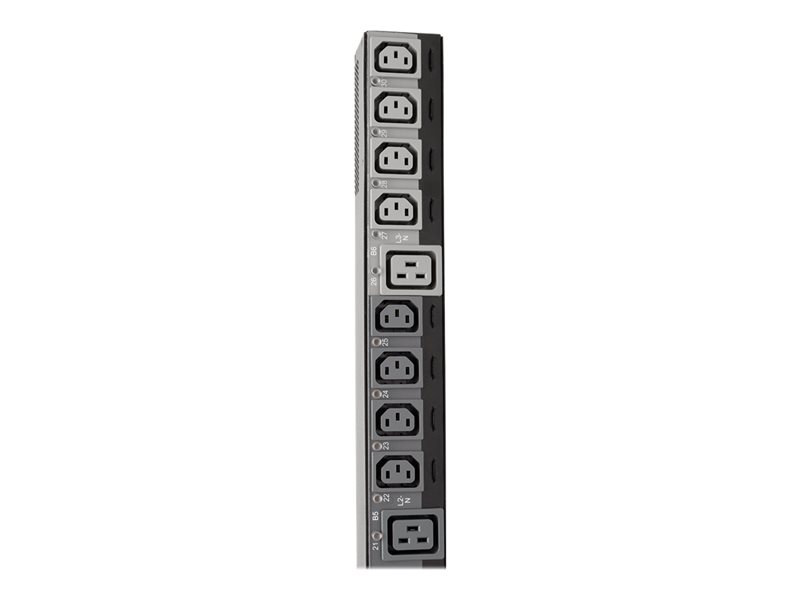

| Output connectors | 24 x power IEC 60320 C13 - 230 V ¦ 6 x power IEC 60320 C19 - 230 V |
| Networking | Ethernet 10/100, USB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
| Included Accessories | 30 plug-lock insert sleeves |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 2.2 in x 2.5 in x 70 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 6 ft |
| Expansion / Connectivity | |

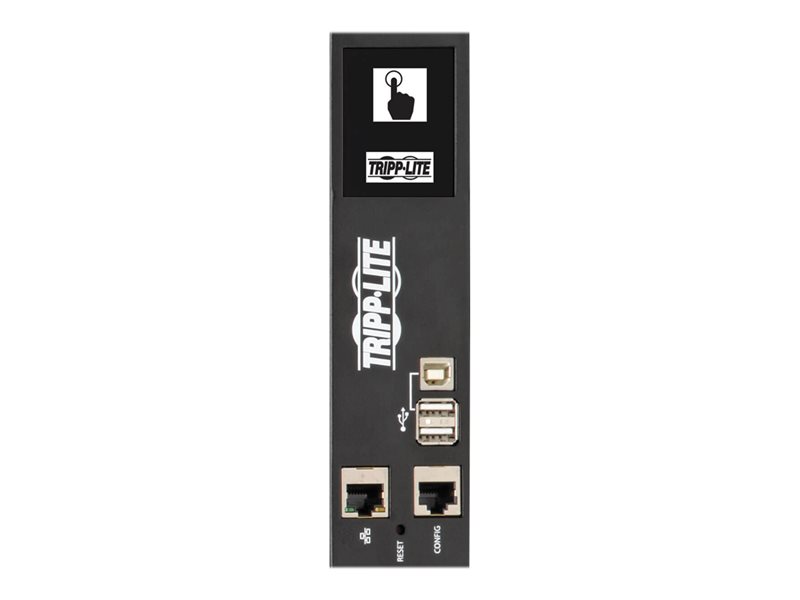

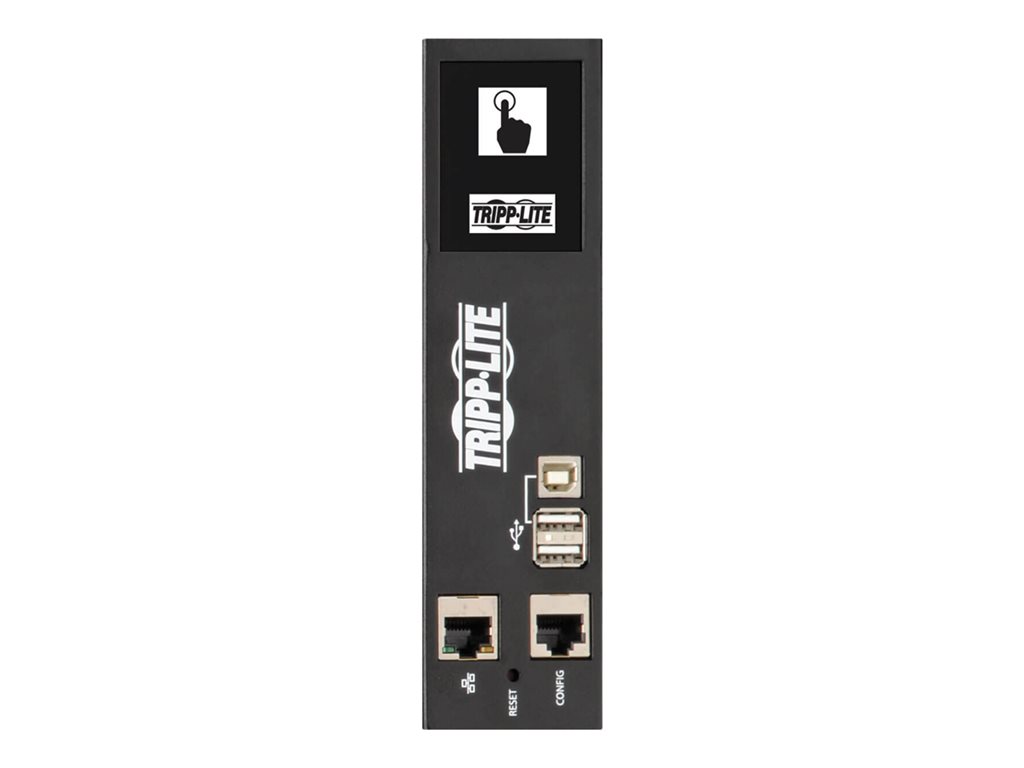

| Interfaces | 1 x management (Fast Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 30 plug-lock insert sleeves |
| Cables Included | Power cable - integrated - 6 ft ¦ Management cable - external |
| Rack Mounting Kit | Included |
| Features | LED indicator, vertical orientation, voltage monitoring, current meter, overload protection, digital power meter, email alerts support, firmware upgradable, touch screen LCD display, energy meter |
| Compliant Standards | RoHS, EN 60950-1 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 380/400 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Input Connectors | 1 x power IEC 60309 63A |
| Power Output Connectors Details | 24 x power IEC 60320 C13 - 230 V ¦ 6 x power IEC 60320 C19 - 230 V |
| Output Voltage | AC 220-230 V 50/60 Hz |
| Max Electric Current | 40 A |
| Power Capacity | 27.7 kW |

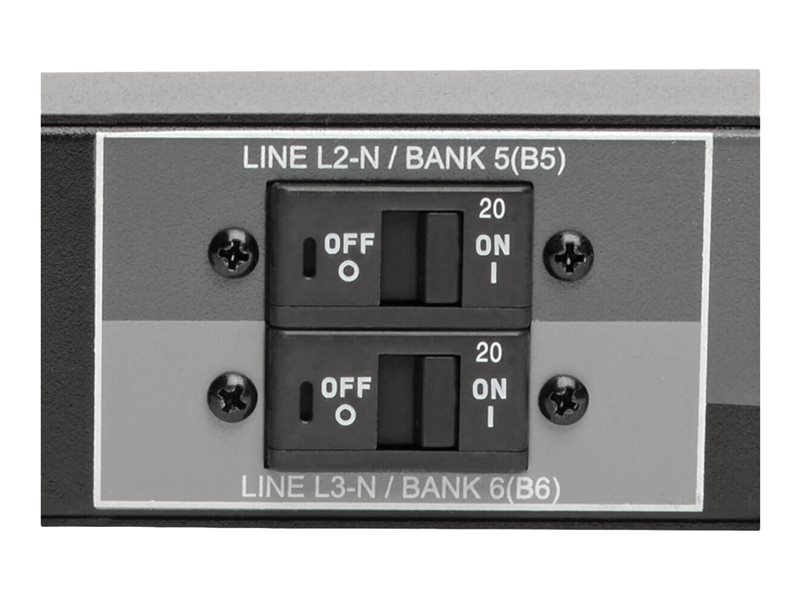

| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.5 in |
| Height | 70 in |
| Weight | 17.7 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.7 in |
| Shipping Depth | 75.9 in |
| Shipping Height | 6.9 in |
| Shipping Weight | 24.91 lbs |
