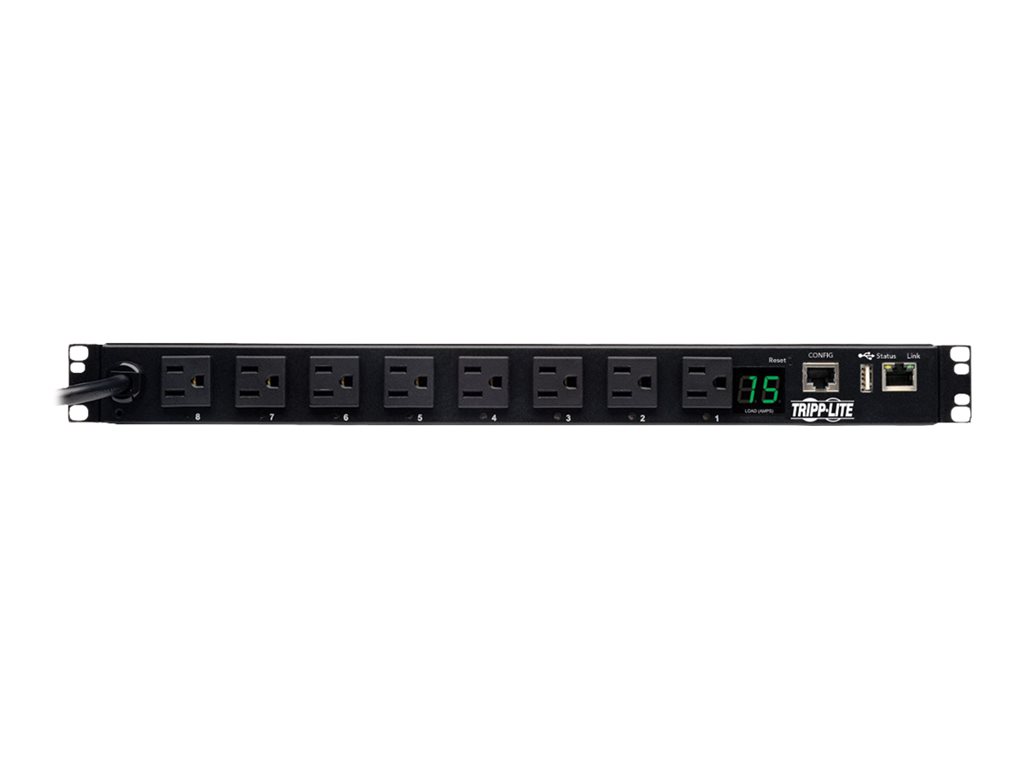

Tripp Lite - Tripp Lite 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA
Power distribution unit (rack-mountable) - 15 A - AC 100/120/127 V - 1.52 kW - 1-phase - Ethernet 10/100, USB, serial - input: NEMA 5-15P - output connectors: 8 (NEMA 5-15) - 1U - 12 ft - TAA Compliant
Tripp Lite
PDUMH15NET2LX
0037332203274
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA - power distribution unit - 1.52 kW |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 12 ft |
| Rack Size | 1U |
| Weight | 5.2 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 100/120/127 V |
| Output Voltage | AC 100/120/127 V |
| Power Capacity | 1.52 kW |
| Input Connectors | 1 x power NEMA 5-15P |
| Output connectors | 8 x power NEMA 5-15 |
| Networking | Ethernet 10/100, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |

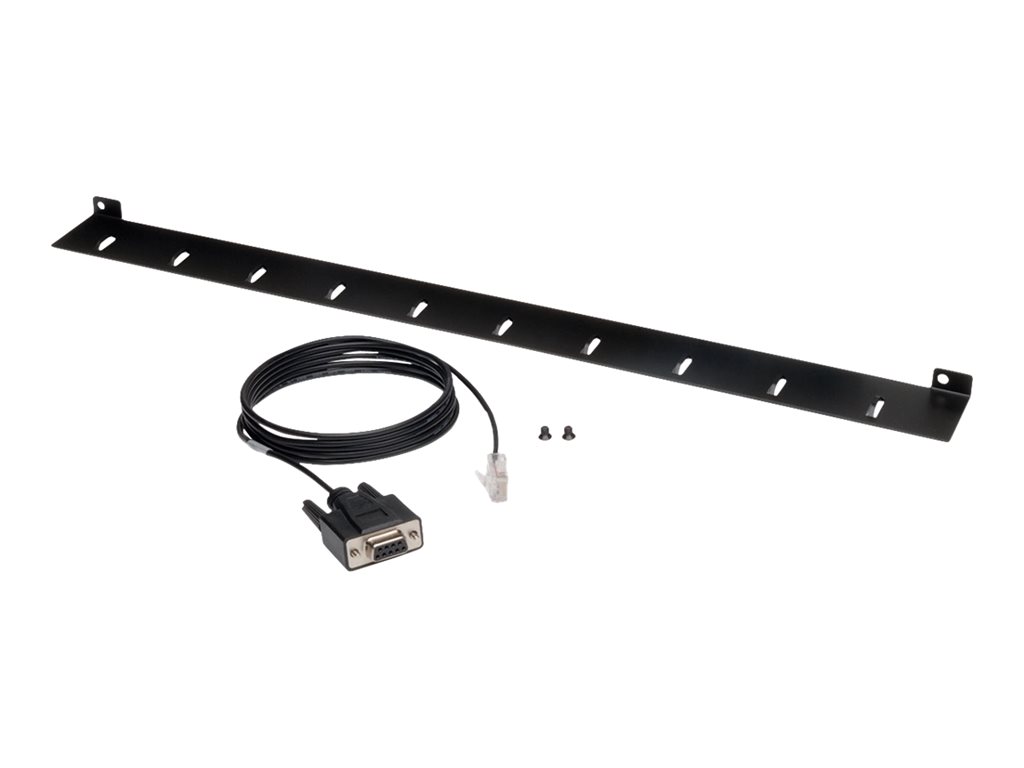

| Included Accessories | 8 cable ties, cable retention bracket |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 17.5 in x 4.3 in x 1.8 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 12 ft |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 8 cable ties, cable retention bracket |
| Cables Included | Power cable - external - 12 ft |
| Rack Mounting Kit | Included |
| Features | Horizontal orientation, LCD display, amp meter |
| Compliant Standards | NOM, RoHS, UL 60950-1, CAN/CSA-C22.2 No. 60950-1 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100/120/127 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Output Voltage | AC 100/120/127 V 50/60 Hz |
| Max Electric Current | 15 A |
| Power Capacity | 1.52 kW |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 4.3 in |
| Height | 1.8 in |
| Weight | 5.2 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.8 in |
| Shipping Depth | 20.5 in |
| Shipping Height | 2.1 in |
| Shipping Weight | 6.9 lbs |
